Programmer Altera USB MAX II CPLD Blaster / FPGA

Programmer Altera USB MAX II CPLD Blaster / FPGA

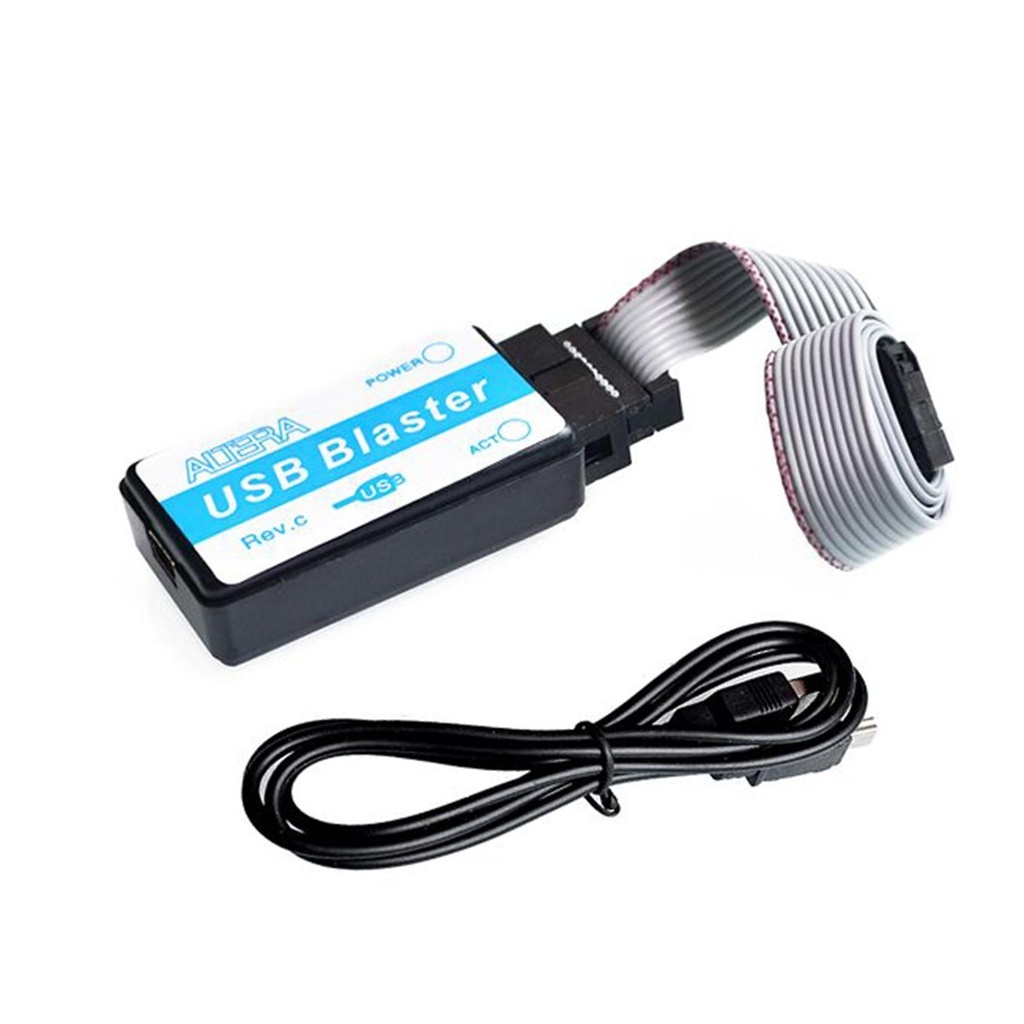

USB MAX II Blaster (Altera CPLD / FPGA Programmer) NIOS JTAG is a USB ISP programmer for programming Altera's range of FPGA and CPLD devices. This programmer is also ideally suited for the Altera development boards. This programmer is compatible with Altera's Quartus development tools (Use USB blaster in programmer hardware settings).

Package includes

  • 1 x device
  • 1 x USB cable
  • 1 x 10pin JTAG cable

45.15 AED 45.15 AED Tax Included
45.15 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

FEATURES

  • Support 1.5V, 1.8V, 2.5V, 3.5V and 5.0V.
  • Support all ALTERA products:
    • CPLD (MAX3000, MAX7000, MAX9000 and MAX II)
    • FPGA (Stratix, StratixII, Cyclone, CycloneII, ACEX 1K, APEX20K and FLEX 10K)
    • Active serial configuration device (EPCS1, EPCS4, EPCS16)
    Tested chips with this Programmer are:
    • Cyclone (EP1C3, EP1C6, EP1C12, EP1C20)
    • Cyclone II (EP2C5, EP2C8, EP2C35)
    • Stratix (EP1S10, EP1S20, EP1S25)
    • Stratix II (EP2S60)
    • FLEX10K (EPF10K10, EPF0K30)
    • ACEX1K (EP1K30)
    • MAX7000 (MAX7128SLC84, MAX7128)
    • AETC100 (MAX3000, MAX3128)
    • MAXII (MAXII240, MAXII570, MAXII1270)
    • EPCS (EPCS1, EPCS4, EPCS16)
    • EPC (EPC1, EPC4)
  • Support AS, PS, and JTAG program (with Verify and Bank check function).
    • JTAG (Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000 and Max3000)
    • AS (EPCS1, EPCS4, EPCS16)
    • PS (Stratix, Stratix GX)
  • Support embedded logic analyzer function of SignalTapII
  • Support NIOS II communication and debugger -- When you use it to debug your Black Gold, it will not Pop-up warning
  • Faster -- about 6 times than ByteblasterII
  • USB interface!
  • 100% compatible with Official ALTERA USB Blaster

Drivers

Drivers for this programmer are provided as part of the Altera Quartus software. You can download the free (web) version of this software from the link below. Once downloaded and installed the drivers can be found in the following path:

C:\altera\13.0sp1\quartus\drivers\usb-blaster

Software

Drivers for this programmer are included in this software. Warning - Large download!

  • Altera Quartus II Web Edition (13.0)
  • Altera Quartus Prime Lite Edition (15.1)
