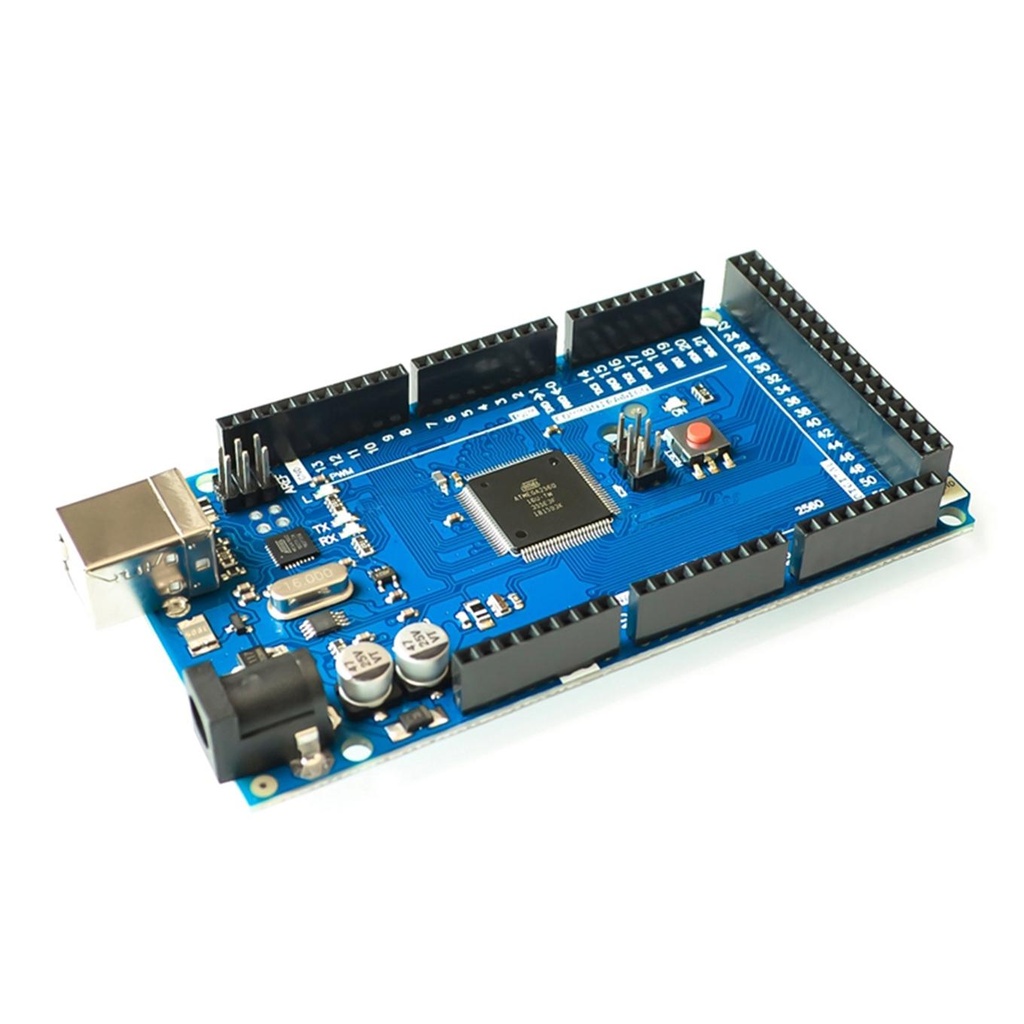

Arduino Mega2560 Development Board (Compatible)
If you're working on projects requiring numerous pins and prefer an affordable alternative to the Arduino Mega Genuine, the Arduino Mega (Compatible) is your ideal choice. Unlike the Arduino UNO, which offers only 20 pins excluding analog pins, the Arduino Mega (Compatible) provides a whopping 54 IO pins, conveniently available for immediate utilization upon purchase. With its expanded pin count, it offers greater flexibility and expanded possibilities for your projects at a fraction of the cost of the original Arduino Mega.
Package Includes:
- 1 x Arduino Mega (Compatible)
Features:
- Ample IO Pins: The Arduino Mega (Compatible) board offers an impressive 54 IO pins, which include digital and analog pins, providing extensive connectivity options for your projects.
- Arduino Mega Compatibility: This board is fully compatible with the Arduino Mega Genuine, making it an excellent alternative for those who want similar capabilities at a more affordable price.
- Enhanced Flexibility: With a higher pin count, this board allows you to connect a wide range of sensors, actuators, and other peripherals simultaneously, making it ideal for complex and multifunctional projects.
- Expanded Memory: The Arduino Mega (Compatible) boasts more flash memory and RAM compared to standard Arduino boards, enabling you to store and run more complex code and data.
- USB Interface: The board features a 16U4 USB interface, allowing easy programming and communication with your computer, making the development process more convenient.
- Diverse Libraries and Community Support: Being Arduino Mega compatible, you can access a wealth of existing libraries and resources, along with a vibrant community of enthusiasts and developers to seek assistance and share knowledge.
- Versatile Power Options: The board supports various power supply options, from USB power to an external power source, ensuring flexibility in different project scenarios.
- Built-in Regulators: The onboard voltage regulators ensure a stable power supply to different components, protecting them from voltage fluctuations.
- Durable Build: Constructed with quality materials, the Arduino Mega (Compatible) board is designed to withstand rigorous usage and provide long-lasting reliability.
Description:
The Arduino Mega (Compatible) emerges as the optimal solution for projects demanding an extensive number of pins, surpassing the limitations of the Arduino UNO with its modest count of 20 pins, inclusive of analog pins. In stark contrast, the Arduino Mega (Compatible) showcases an impressive array of 70 IO pins, primed for immediate utilization upon unpacking. This comprehensive pin count encompasses 54 digital pins and 16 analog transducers, empowering seamless integration with USART and various other communication protocols.
Equipped with a 16 MHz crystal clock, the Arduino Mega (Compatible) ensures precise timing and synchronization, while its integrated interrupt mechanism facilitates efficient controller wakeup functionality. Moreover, its advanced timer capability, analog comparator, and other notable features synergistically contribute to its exceptional operational speed and efficacy.
To foster enhanced connectivity, the Arduino Mega (Compatible) provides over 5 pins each for Vcc (power supply) and GND (ground), facilitating convenient and secure connections to external devices. This abundance of power and ground pins amplifies the versatility of the board, enabling effortless integration with a myriad of peripherals and components.
The Arduino Mega (Compatible) encapsulates the spirit of professionalism and reliability through its meticulous design, robust performance, and comprehensive feature set. Whether you are an avid maker, a devoted hobbyist, or a seasoned engineer, this board empowers you to embark on ambitious projects with utmost confidence, surpassing the constraints imposed by pin limitations and unlocking boundless possibilities for innovation and creativity.
Principle of Work:
Arduino embraces the concept of "Free hardware," which refers to its open-source nature, allowing the blueprints and specifications of its boards to be freely accessible for replication by anyone. This framework empowers individuals and businesses to design their own unique Arduino boards while ensuring compatibility and functionality within the established Arduino ecosystem.
Similarly, Arduino follows the principle of "Free software," where the source code of its software is openly available, granting users the freedom to utilize and modify it to suit their needs.
To facilitate the development of applications for Arduino boards and offer a wide range of utilities, Arduino provides the Arduino IDE (Integrated Development Environment) platform. This platform serves as a programming environment where users can write and upload their code, known as sketches. With the assistance of an embedded bootloader and an onboard Serial Converter, the Arduino boards enable easy code uploading without the need for an external programmer.
One of the key advantages of Arduino is the availability of libraries, which can be downloaded from online sources. These libraries provide pre-built functions and routines that simplify the programming process. They allow users to interface with a diverse array of sensors and modules, even without in-depth knowledge of their underlying workings. This empowers Arduino users to leverage a wide range of components and expand the capabilities of their projects without delving into the intricate technical details of each individual sensor or module.
Key Components of the Arduino Board:
- Microcontroller Unit (MCU): The brain of the system, typically an Atmel AVR microcontroller such as ATmega2560 or ATmega328P.
- Clock Generator: Provides timing signals to synchronize operations and ensure accurate instruction execution.
- Memory: Includes Flash memory (for storing code), RAM (for data during execution), and EEPROM (persistent data storage).
- Input/Output (IO) Pins: Digital and analog pins configurable for various communication protocols and sensor interfaces.
- Power Supply: Supports USB or external power sources with onboard voltage regulation.
- USB Interface: For programming and communication with computers.
- Bootloader: Facilitates uploading code without external programmers.
- Supporting Components: Includes resistors, capacitors, and transistors for signal conditioning and protection.
Pinout of the Module:
Pin Details and Power Supply:
- Power Supply: Powered via USB or external source (7V-12V recommended). External power connects through power jack or Vin and GND pins.
- Digital Pins: 54 digital pins (0-53), configurable as input or output.
- Analog Pins: 16 analog pins (0-15), used for analog inputs or digital IO.
- PWM Pins: Digital pins 2-13 support PWM output.
- USART Pins: Multiple serial communication pins (0, 1, 14-17, 18-19).
- SPI Pins: Pins 22-25 support SPI communication.
- I2C Pins: Pins 20 (SDA) and 21 (SCL) support I2C communication.
- Hardware Interrupt Pins: Pins 2, 3, and 18-21 support external interrupts.
- Pin 13: Built-in LED connected to pin 13 for simple testing.
