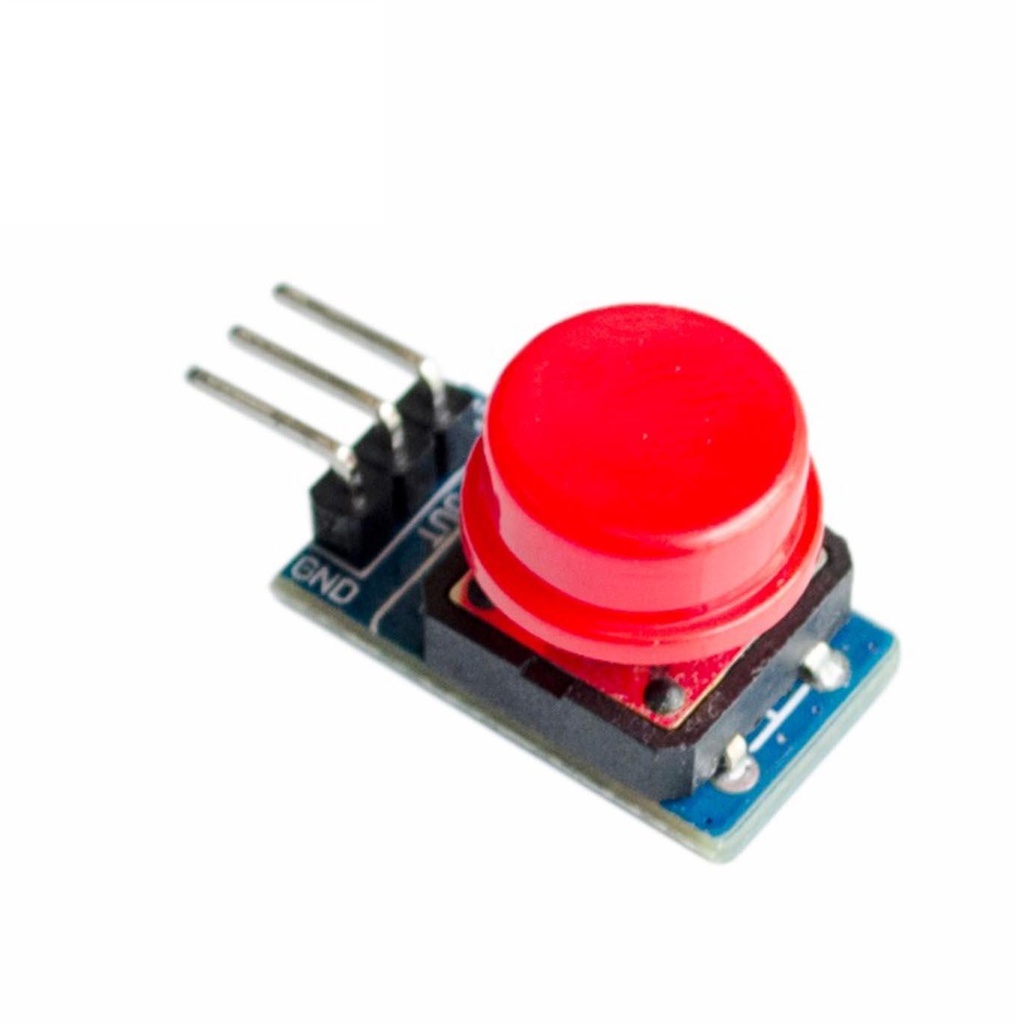

Push Button Module Module 20x13mm Red

Features:

• Red button for easy identification and activation
• Micro switch module for reliable operation
• Compact size (20x13mm) for easy integration
• Lightweight design
• Seamless connection with MCUs, ARM, Raspberry Pi, Arduino
• OUT pin goes HIGH when pressed
• Integrated pull-down resistor
• Long service life
• Easy to dismantle

Specification:

• Voltage: 3.5 - 5V
• Output: Digital (Press: HIGH, Release: LOW)
• Color: Red Cap
• Dimension: 13 x 20 x 14mm
• Weight: 3g

Pin Connections:

Sample Project:

Circuit:

Library: No external library required.

Code:

const int digitalPin = 2; // Digital input pin for the keypad

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(digitalPin, INPUT); // Set the digital pin as input
}

void loop() {
  int buttonState = digitalRead(digitalPin); // Read the digital value from the keypad

  // Check if a key is pressed
  if (buttonState == HIGH) {
    Serial.println("Key pressed");
    delay(500); // Avoid rapid multiple readings
  }
}

References:

• Tactile Switch Module - Nadi Eleczone
• Arduino LED Hold Button Project - Visuino
