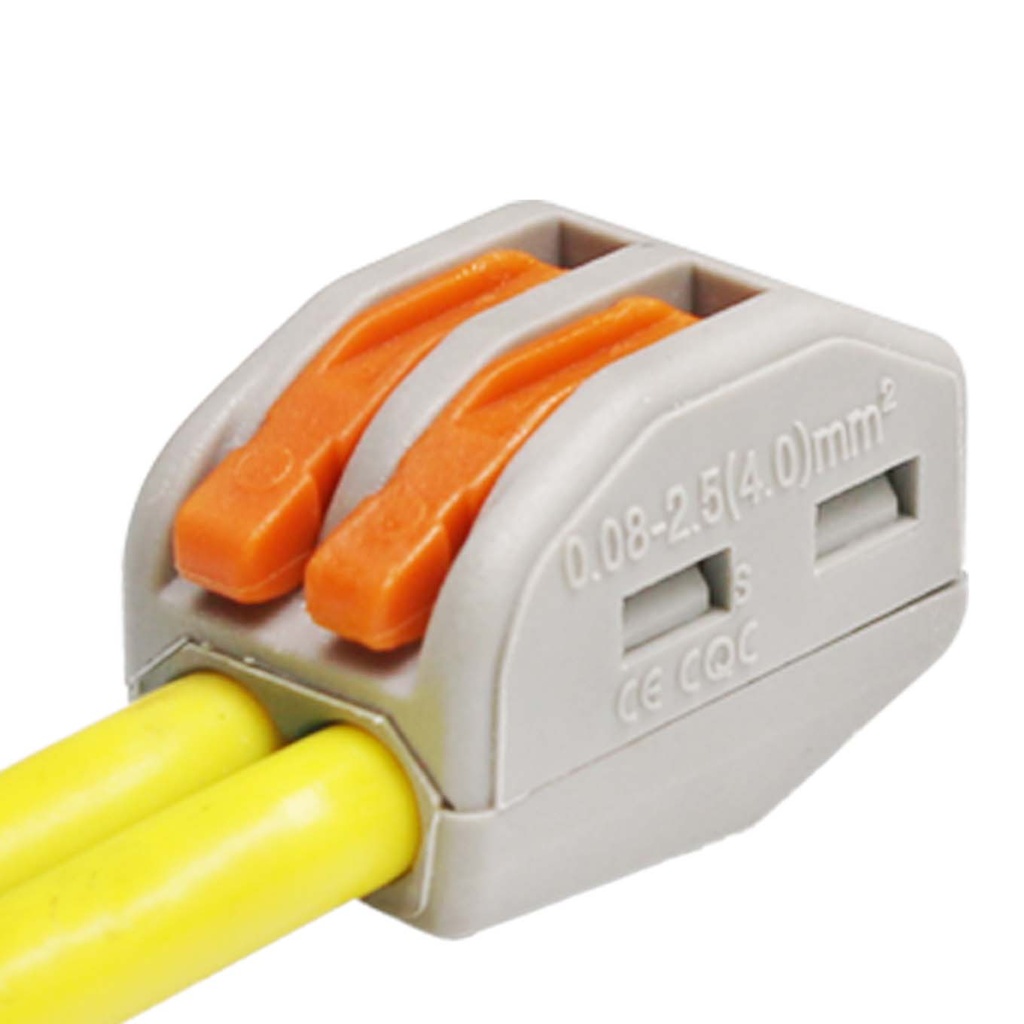

Connector PCT-212 Wire Conductor 2 Terminals Block

Connector PCT-212 Wire Conductor 2 Terminals Block

Mini fast WAGO-style connector with a compact lever design. No loose wires, no risk of tape brittleness, safe and visible connection. Allows for tension measurement without removing tape. Features direct plug-in and independent shrapnel on each contact to accommodate different wire diameters and ensure safety against short circuits.

Package Includes:

  • 1 x PCT-212 222-412 Universal Compact Wire Wiring Connector 2-pin Conductor Terminal Block

2.10 AED 2.10 AED Tax Included
2.10 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications:

  • Rated Voltage: 400V
  • Model Number: 222-412
  • Rated Impulse Voltage: 4KV
  • Material of Insulation: Modified nylon (PA66)
  • Contact Material: Phosphor copper
  • Wire Cross Section:
    • 0.08~2.5mm² (single hard wire)
    • 0.08~4mm² (multi soft wire)
  • Rated Current: 32A
  • Rated Power: 7KW
  • Gauge: 28~12AWG
  • Strip Length: 9 - 10mm
  • Package: Polybag
