Switch Microswitch 3Pin Mouse 1A 125V AC with Roller

Switch Microswitch 3Pin Mouse 1A 125V AC with Roller

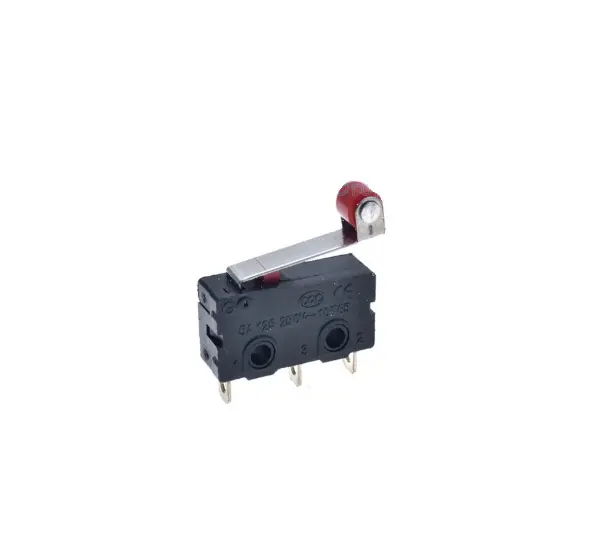

This Micro Switch is a compact and reliable momentary SPDT switch with a roller lever arm, suitable for precision electronic applications, control systems, and limit switch configurations.

Package Includes:

  • 1 x Micro Switch with Roller Lever Arm

6.30 AED 6.30 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

Product Name Micro Switch
Voltage & Current AC 125V 1A
Poles SPDT
Contact Type 1NO + 1NC
Action Type Momentary
Actuator Type Roller Lever Arm
Terminal Type 3-Pin Terminals
Overall Size 12.5 x 5.5 x 10mm / 0.49" x 0.22" x 0.39" (L×W×H)
Mounting Hole Diameter 2mm / 0.08"
Mounting Hole Spacing 6.5mm / 0.26"
Pin Pitch 5mm / 0.2"
Lever Arm Size 13.5 x 4mm / 0.53" x 0.16" (L×Max.W)
Roller Size 5 x 3mm / 0.2" x 0.12" (D×T)
Material Plastic, Metal
Color Black, White, Red, Silver Tone
Total Weight 0.9g

Features:

  • Compact and lightweight design
  • Momentary contact with SPDT configuration
  • Durable roller lever for mechanical actuation
  • Suitable for limit sensing, automation, and robotics
