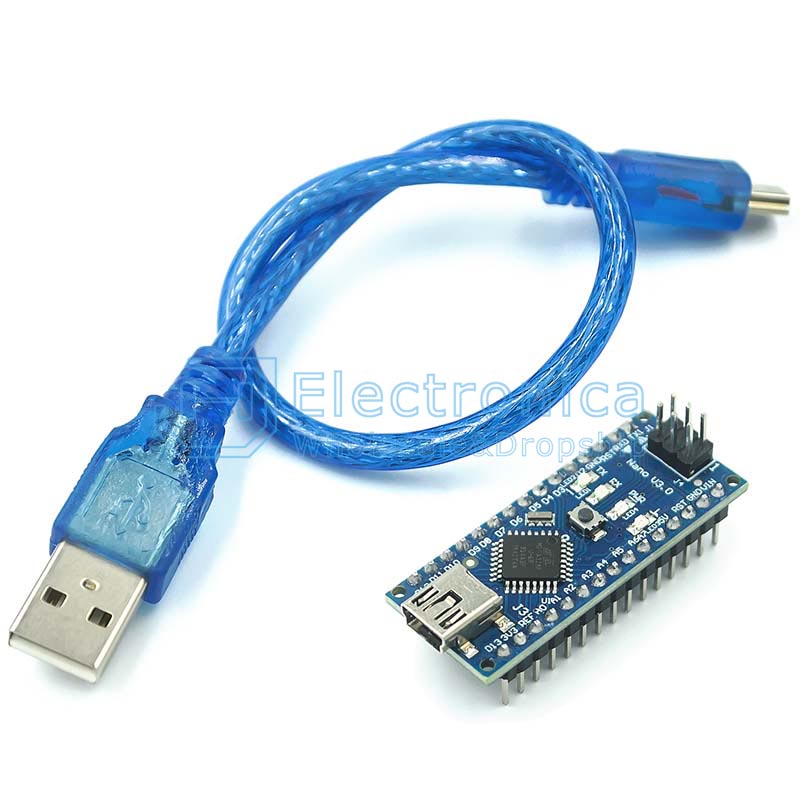

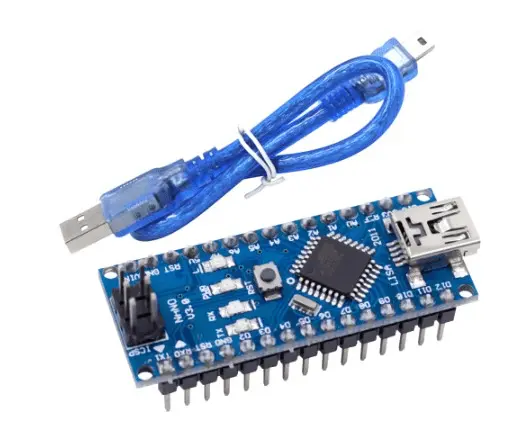

Arduino Nano V3.0 With FT232 Converter (Compatible)

Arduino Nano V3.0 With FT232 Converter (Compatible)

The Nano V3.0 development board is a compact and powerful microcontroller module ideal for both small and larger electronics projects. Thanks to its tiny size, it can easily fit into tight enclosures and wearable designs. Despite its compact footprint, it offers 14 digital I/O pins (6 of which support PWM), 8 analog inputs, and full compatibility with the Arduino IDE.

This board is equipped with the ATmega328P-AU microcontroller and a pre-installed bootloader, making it ready for immediate programming via USB. The inclusion of the FT232RL USB-to-Serial chip ensures stable and reliable communication with your computer, eliminating the need for external programmers.

42.00 AED 42.00 AED Tax Included
42.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Arduino Nano Board
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Key Features

  • Fully compatible with Arduino Nano V3.0

  • Based on the ATmega328P-AU microcontroller

  • FT232RL USB interface for seamless programming

  • Compact and space-efficient design for embedded projects

  • Ideal for both hobbyist and professional development

Specifications

Parameter Details
Operating Voltage 5V
Recommended Input Voltage 7V–12V
Input Voltage Limits 6V–20V
Digital I/O Pins 14 (6 with PWM support)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 45 mm × 18 mm × 20 mm

Package Includes

  • 1 × Nano V3.0 Development Board (ATmega328P-AU, FT232RL)

  • 1 × USB Cable
