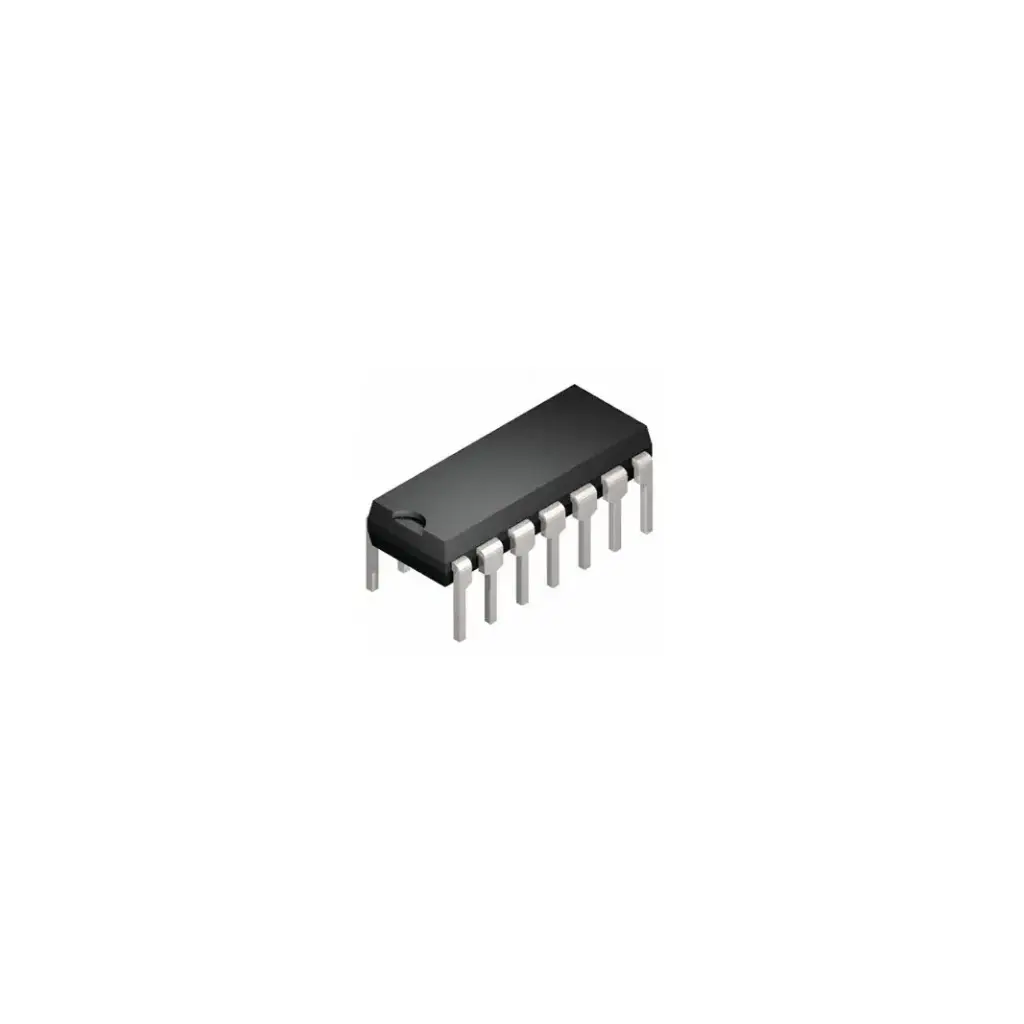

IC Logic Gate 74LS08N AND
The 74LS08 is a Quadruple 8-bit Two-Input AND IC, a digital circuit designed to process logic states. In an AND gate, two logic state signals are employed: HIGH (3-5 Volts) and LOW (0-2.6 Volts). Each AND gate has two input pins and one output pin, with the output transitioning to HIGH only when both input states are HIGH.
Features:
Low power consumption
Fast operating speed
Outputs in TTL, compatible with various devices and microcontrollers
Independent use of a single AND gate without affecting others
All four gates can be powered by a single power supply
Specifications:
Operating Voltage Range: 4.75 – 5.25 Volts, recommended at 5 volts (up to a maximum of 7 volts)
Maximum Output Current: 8mA
Rise and Fall Time: 18ns
Temperature Range: 0 to 70°C, with storage capability from -65 to 150°C
Applications:
General-purpose logic operations using AND gates
Widely used in Digital Electronics, Networking Devices, Servers, Memory Units, and ALU
Versatile usage in various Digital Systems
Package Includes:
1 x 74LS08 Quad 2-Input AND IC
