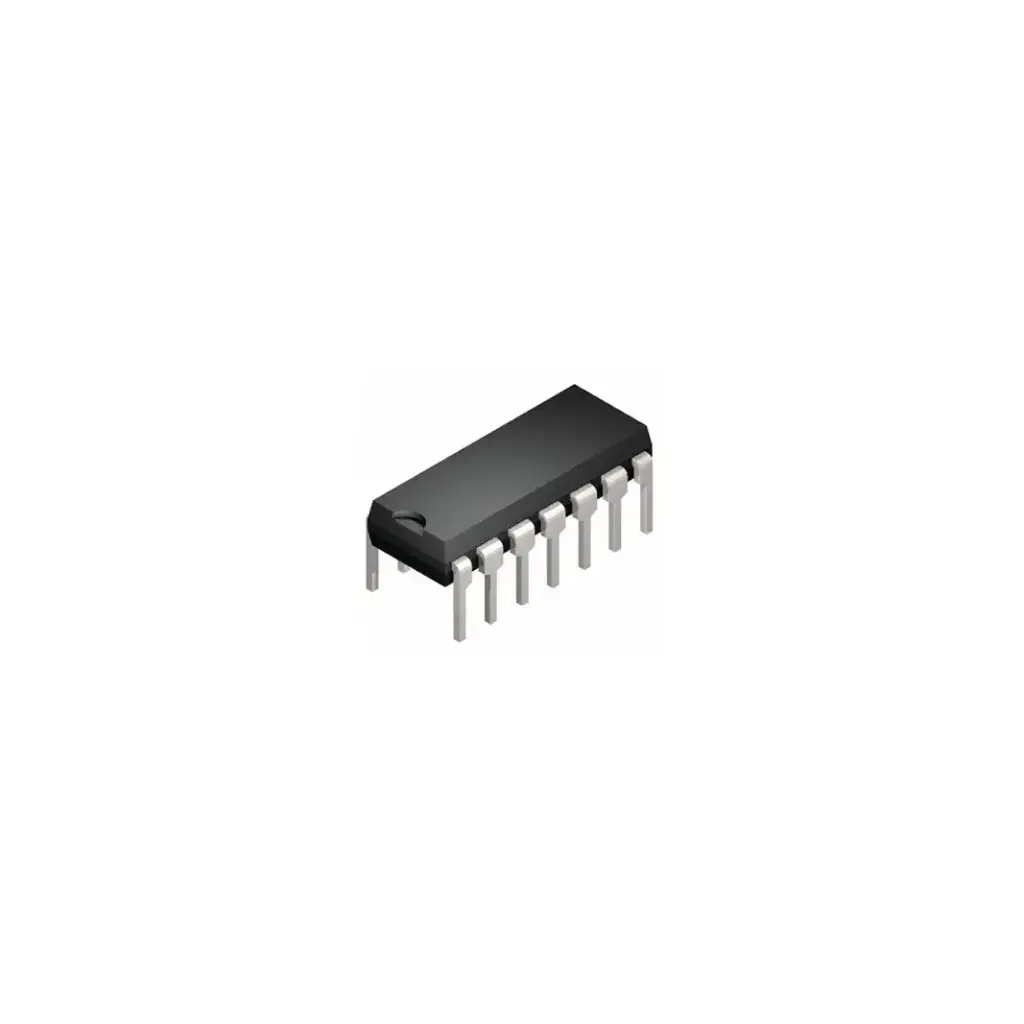

IC Logic Gate 74LS00N NAND

IC Logic Gate 74LS00N NAND

The 74LS00 is a quad 2-input NAND gate IC from the TTL (Transistor-Transistor Logic) family. It's a versatile and essential component used in various logic circuits.

6.30 AED 6.30 AED Tax Included
6.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features:

  • Universal Gate: The 74LS00 can be used as a NAND gate, but due to the universality of the NAND gate, it can easily be converted into other logic gates like OR and NOT.

  • TTL Based: The internal structure is based on TTL, and thus, its output is also in TTL.

  • High-Frequency Use: It can handle high-frequency operations, making it suitable for many digital systems.

Specifications:

  • Operating Voltage: 4.75V to 5.25V.

  • Maximum Power Supply Voltage: 7V (Exceeding this may cause the IC to burn out).

  • Current Draw: Maximum current draw from each gate is 8mA.

  • ESD Protection: 3.5kV ESD (Electrostatic Discharge) protection.

  • Rise/Fall Time: 15ns.

  • Operating Temperature: 0°C to 75°C.

  • Input Voltage Levels: Low-level input = 0.8V, High-level input = 2V.

  • Clamp Voltage: -1.5V internal clamp.

Pinout:

Pin Number Pin Name Description
Pin 1 A1 First input of the first NAND gate.
Pin 2 B1 Second input of the first NAND gate.
Pin 3 Y1 Output of the first NAND gate.
Pin 4 A2 First input of the second NAND gate.
Pin 5 B2 Second input of the second NAND gate.
Pin 6 Y2 Output of the second NAND gate.
Pin 7 GND Ground pin for the IC.
Pin 8 Y3 Output of the third NAND gate.
Pin 9 A3 First input of the third NAND gate.
Pin 10 B3 Second input of the third NAND gate.
Pin 11 Y4 Output of the fourth NAND gate.
Pin 12 A4 First input of the fourth NAND gate.
Pin 13 B4 Second input of the fourth NAND gate.
Pin 14 Vcc Power supply pin for the IC.

Applications:

  • General-Purpose Logic: Used in a variety of logic circuits.

  • Digital Electronics: Common in digital electronics due to its low cost and versatility.

  • PCs and Notebooks: Used in the construction of the logic circuits of computers and other portable devices.

  • Servers: Frequently used in servers for logic operations.

  • ALUs and Digital Systems: Common in Arithmetic Logic Units and other digital systems.

  • Networking Systems: Used for processing and controlling logic states in networking applications.

"
