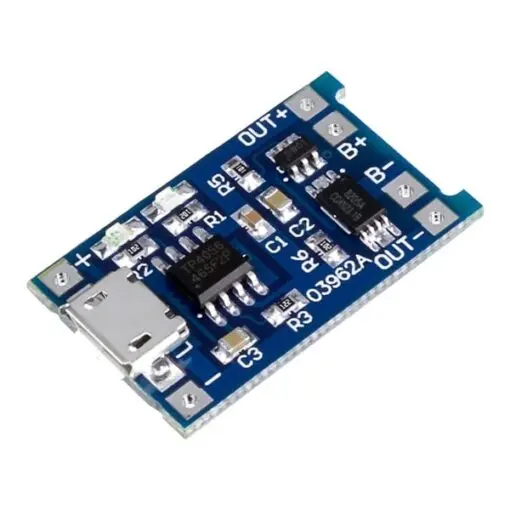

DC-DC Battery Charger Module for LiPo Lithium Battery with Micro USB Port 1A

DC-DC Battery Charger Module for LiPo Lithium Battery with Micro USB Port 1A

This TP4056 Lithium Battery Charging Module is built around the advanced TP4056 linear charging chip, offering accurate, efficient, and compact battery charging for single-cell Li-ion batteries. The module supports adjustable charging currents (from 100mA to 1000mA) by changing a fixed resistor on the board. Designed with high-quality SMD components and manufactured using fully automated machinery, this module is ideal for embedded and portable power applications.

Package Includes

  • 1 x TP4056 Lithium Battery Charging Module

9.45 AED 9.45 AED Tax Included
9.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Advanced Charging Chip: Uses the TP4056 IC for high-accuracy lithium battery charging.
  • Adjustable Charge Current: Easily set between 100mA to 1000mA by modifying the onboard resistor.
  • Compact Design: Small size suitable for integration into tight spaces.
  • LED Indicators: Red LED indicates charging; green LED indicates full charge.
  • Micro USB Input: Compatible with common USB chargers and cables.
  • Thermal Stability: Operating temperature range of -10°C to +85°C.

Specifications

Module Name Lithium Battery Charging Board
Charging Type Linear Charge
Charge Current 1A (Adjustable)
Charging Accuracy ±1.5%
Input Voltage 4.5V - 5.5V
Full-Charge Voltage 4.2V
Charge Indication Red = Charging, Green = Fully Charged
Input Interface Micro USB
Operating Temperature -10°C to +85°C
Reverse Connection Not allowed
Weight 1.8g
Dimensions 25 x 19 x 10 mm

Applications

  • Single-cell lithium-ion battery charging
  • DIY power banks and USB charging projects
  • Wearable electronics and embedded systems
  • Battery-powered IoT and sensor modules
