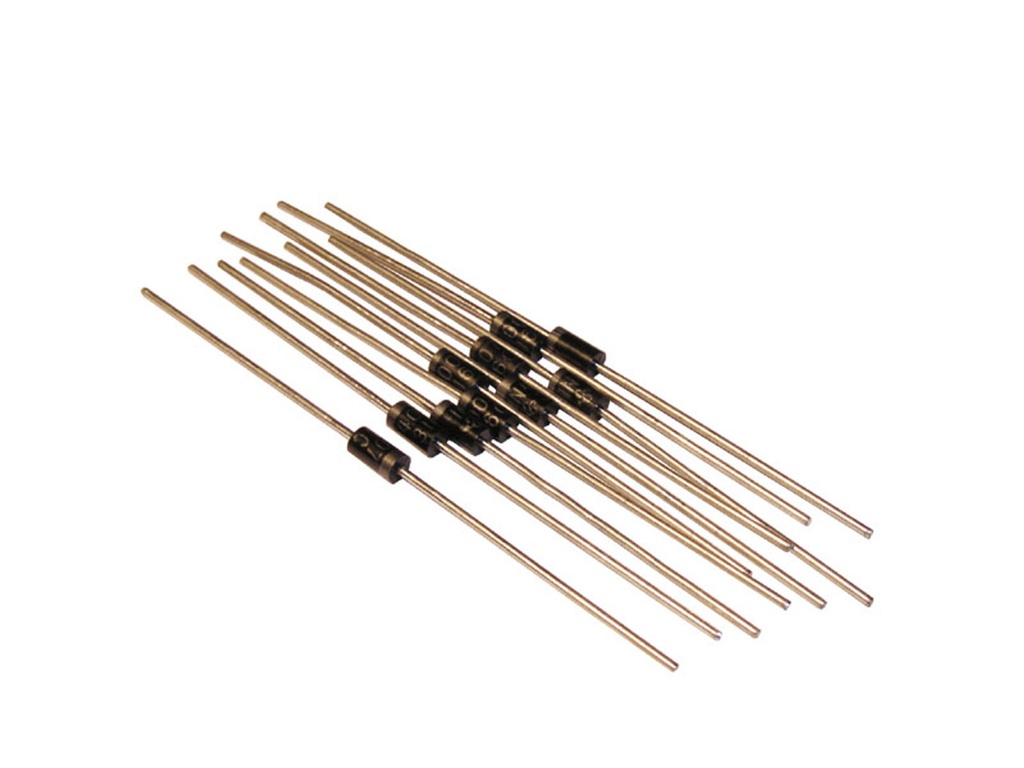

Diode Schottky Switching Rectifier Diode 100 Pcs Assortment Kit

Diode Schottky Switching Rectifier Diode 100 Pcs Assortment Kit

This assortment kit includes eight different diode types, convenient for DIY projects, equipment maintenance, and electronic appliance repairs. Schottky diodes are semiconductor diodes with a significantly lower forward voltage drop compared to conventional silicon PN-junction diodes, making them ideal for high-speed switching and low-power applications.

Package Includes:

  • 25 pcs 1N4148 Switching Signal Diode DO-35
  • 25 pcs 1N4007 1A 1000V Rectifier Diode DO-41
  • 10 pcs 1N5399 1.5A 1000V Rectifier Diode DO-15
  • 5 pcs 1N5408 3A 1000V Rectifier Diode DO-201AD
  • 10 pcs FR107 1A 1000V Fast Recovery Diode DO-41
  • 10 pcs FR207 2A 1000V Fast Recovery Diode DO-41
  • 10 pcs 1N5819 1A 40V Schottky Diode DO-41
  • 5 pcs 1N5822 3A 40V Schottky Diode DO-201AD

30.45 AED 30.45 AED Tax Included
30.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Schottky diodes are widely used in rectification, signal conditioning, switching, and TTL/CMOS logic gates due to their low forward voltage and fast recovery times. PN-junction diodes, formed by joining p-type and n-type semiconductor materials, serve as rectifying devices by allowing current flow under forward bias and blocking current under reverse bias.

Advantages of Schottky Diode:

  • Fast recovery time due to very low stored charge, ideal for high-speed switching
  • Low turn-on voltage
  • Low junction capacitance
  • Low voltage drop
