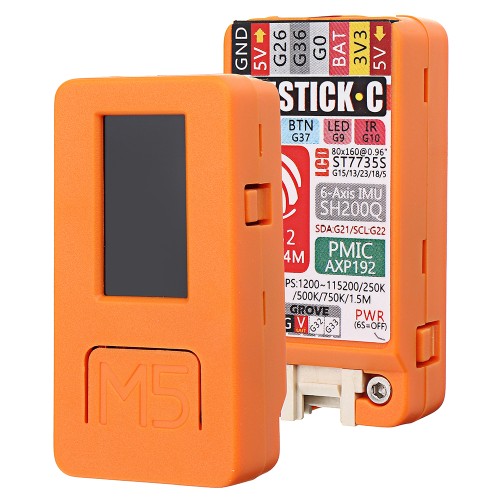

ESP32 M5 StickC PICO Mini IoT Development Board

ESP32 M5 StickC PICO Mini IoT Development Board

M5Stick-C is a mini M5Stack with ESP32 inside. It is portable, easy to program, and open-source, ideal for IoT development. This tiny block allows you to realize your ideas, boost creativity, and accelerate IoT prototyping. M5Stick-C is part of the M5Stack product series with a growing hardware and software ecosystem, compatible modules, and a supportive open-source community.

Package Includes:

  • 1x M5Stick-C
  • 1x USB Type-C cable

262.50 AED 262.50 AED Tax Included
262.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • 5V DC power supply
  • USB Type-C
  • ESP32-based
  • 4 MByte Flash + 520K RAM
  • 6-Axis IMU SH200Q
  • Red LED
  • IR transmitter
  • Microphone
  • 2 Buttons, LCD (0.96 inch), 1 Reset
  • 2.4G Antenna: Proant 440
  • 80 mAh Lipo Battery
  • Extendable Socket
  • Grove Port
  • Wearable & Wall-mounted
  • Development Platforms: UIFlow, MicroPython, Arduino

ESP32 Features:

  • 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
  • Integrated 520 KB SRAM
  • Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack, and LWIP
  • Integrated dual-mode Bluetooth (classic and BLE)
  • Hall sensor
  • 10x capacitive touch interface
  • 32 kHz crystal oscillator
  • PWM/timer input/output available on every GPIO pin
  • SDIO master/slave 50MHz
  • SD-card interface support



Power Switch Operation:

  • Power on: Long press power button for 2 seconds
  • Power off: Short press the power button for 6 seconds

RED LED, IR Transmitter, and Buttons:

Component ESP32 Pin
RED LED GPIO10
IR Transmitter GPIO9
BUTTON A GPIO37
BUTTON B GPIO39

TFT LCD:

  • Driver IC: ST7735S
  • Resolution: 80 x 160
ESP32 Pin Connection
GPIO33 TFT LCD
GPIO32 TFT LCD
5V Power
GND Ground
SCL Grove Port
SDA Grove Port

MIC (SPM1423):

ESP32 Pin Connection
GPIO0 MIC
GPIO34 MIC
SCL Grove Port
SDA Grove Port

6-Axis Posture Sensor (SH200Q) & Power Management IC (AXP192):

ESP32 Pin Connection
GPIO22 6-Axis Posture Sensor SCL
GPIO21 6-Axis Posture Sensor SDA
SCL Power Management IC
SDA Power Management IC
