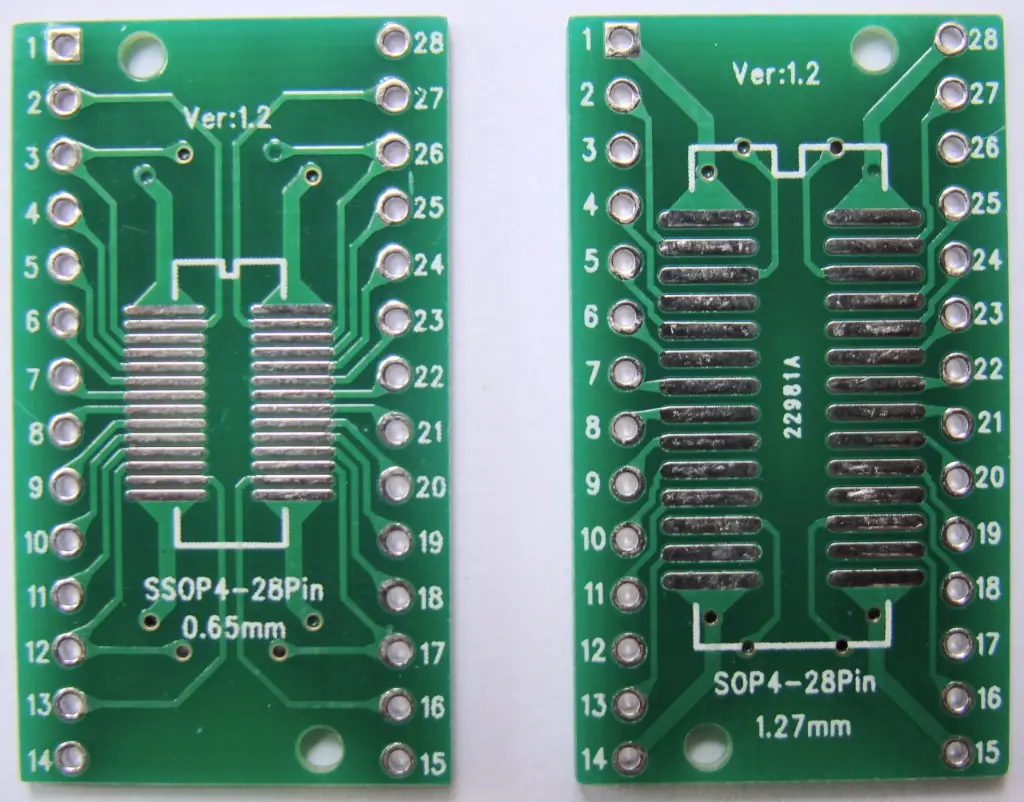

Adapter PCB Board Smd Turn To Dip SOP28 0.65/1.27mm

Adapter PCB Board Smd Turn To Dip SOP28 0.65/1.27mm

Prototyping and testing are crucial stages in the development of electronic circuits, allowing designers to validate and refine their systems before full-scale production. For projects involving SMD (Surface-Mount Device) packages such as QFP32, SOP16, or SOP128, early testing can be challenging due to the lack of custom PCBs. This Dual-Side SMD to DIP Adapter addresses that issue by converting SMD footprints to a standard 2.54mm (0.1-inch) DIP format, making them compatible with breadboards and through-hole prototyping tools.

Package Includes:

  • 1 x Dual-Side SMD to DIP Adapter Converter Board (0.5mm / 0.8mm)

12.60 AED 12.60 AED Tax Included
12.60 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Dual-Side Design:
    • Side A: Supports 0.8mm pin pitch (ideal for QFP, TQFP, LQFP, and FQFP packages with 32 to 64 pins).
    • Side B: Supports 0.5mm pin pitch (for QFP, TQFP, LQFP, FQFP packages with 32 to 100 pins).
  • DIP Output Compatibility: Converts SMD pins to standard 2.54mm DIP spacing for use with breadboards and perfboards.
  • High-Quality PCB: Constructed with durable FR4 material and certified for performance and heat resistance.
  • Flexible Connectivity: Compatible with jumper wires, DIP headers, and berg strips for convenient testing setups.
  • Efficient Prototyping: Eliminates the need for custom PCBs during initial design phases, saving both time and cost.

Specifications:

  • Pin Pitch:
    • Side A: 0.8mm (for QFP, TQFP, LQFP, FQFP – 32 to 64 pins)
    • Side B: 0.5mm (for QFP, TQFP, LQFP, FQFP – 32 to 100 pins)
  • Output Pin Spacing: 2.54mm (0.1-inch) DIP format
  • Material: FR4-grade PCB with FPT certification
  • Board Type: Dual-sided for broader compatibility
  • Application: SMD to DIP conversion for breadboard-friendly prototyping
