Keyestudio Expansion NANO IO Shield (Nano not included)

Keyestudio Expansion NANO IO Shield (Nano not included)

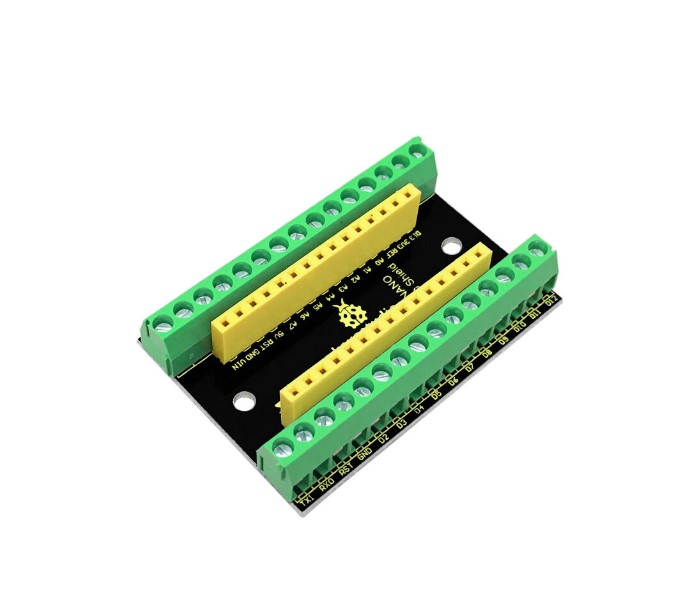

The Nano IO Shield is a compact and efficient solution for breaking out all the pins of an Arduino Nano or compatible board, providing easier connectivity for your projects. It simplifies prototyping with clearly labeled pinouts and versatile connection options. The shield includes two 3mm mounting holes for easy attachment and stability, 3.5mm terminal blocks for secure wiring, and 2.54mm pitch female headers compatible with a wide range of modules and sensors.

Package Includes:

  • 1 x Keyestudio NANO IO Shield

Note: The Arduino Nano board is not included with the shield.

30.45 AED 30.45 AED Tax Included
30.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Expansion for Nano
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Terminal block spacing: 3.5mm
  • Female header pitch: 2.54mm
  • Board dimensions: 53mm x 36mm (compact design, ideal for tight spaces)
  • Weight: 20.5g (lightweight yet sturdy)
  • Material: High-quality PCB with gold-plated connectors

Pinout Details:

The shield offers well-organized pinouts for easy access to digital and analog pins, as well as power and ground connections. Interfaces marked with a red line in the diagram indicate connected pins.

Applications:

  • Attach your Arduino Nano to the IO shield and upload the Blink example sketch to get started.
  • Power the Nano through the VIN and GND terminals to control external components such as LEDs or sensors.
  • Provides a quick and clean way to power your project and handle external outputs.
