Specifications
- Operating Voltage: 2V to 5V
- Wiring: Red (+), Blue (–)

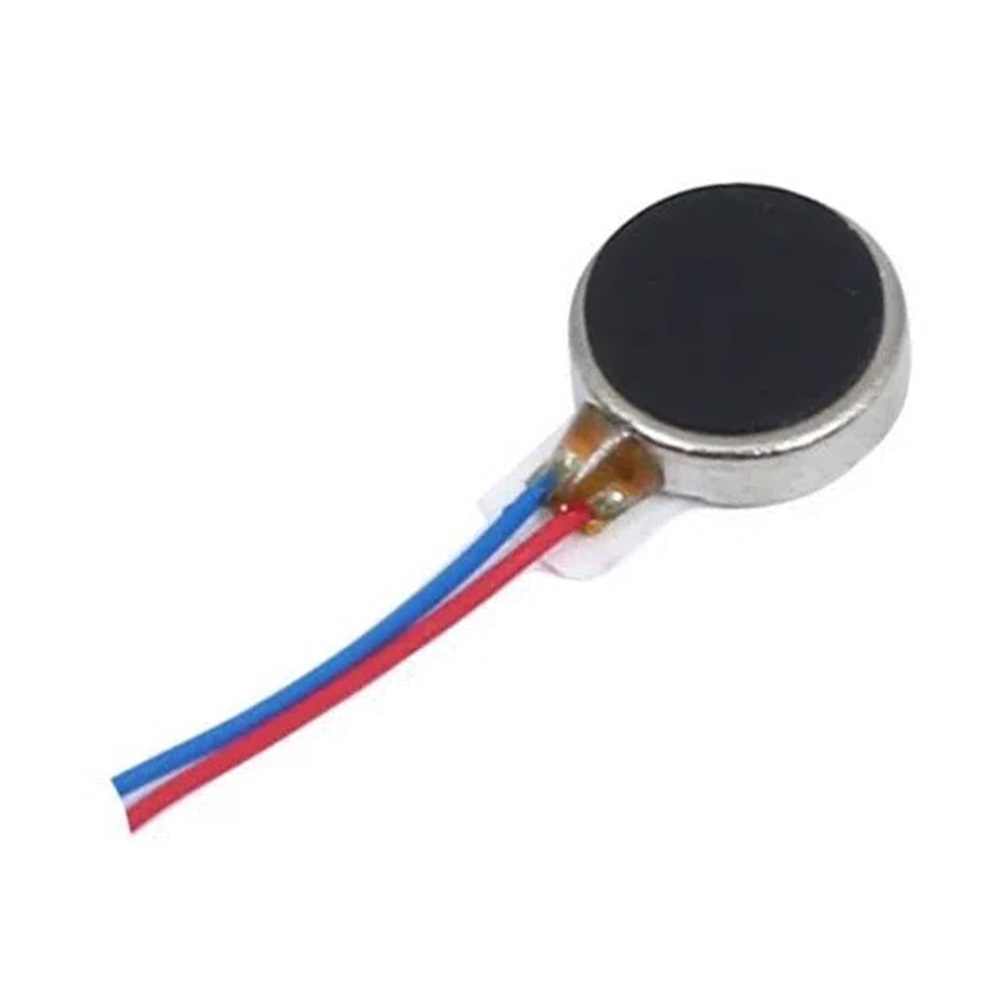

- Form Factor: Compact sealed disc
- Current Draw: Approx. 75mA at 5V
- Resistor Optional: 100Ω to 1000Ω in series to reduce vibration strength
Applications
- Wearable electronics
- DIY vibration alert systems
- Haptic feedback in controllers
- Alarm signaling and remote indicators
- Silent notification systems
Example Arduino Circuit
To safely drive the vibration motor from an Arduino, use a transistor to amplify the current:
- Parts Required:
- Arduino Board
- Vibration Motor
- 2N2222 NPN Transistor
- 1N4001 Diode (for flyback protection)
- 1KΩ Resistor (base resistor for transistor)
- 0.1µF Ceramic Capacitor
- USB Connector or power supply
Connection Diagram:
Arduino Code Example
const int motorPin = 3;
void setup() {
pinMode(motorPin, OUTPUT);
}
void loop() {
digitalWrite(motorPin, HIGH);
delay(1000); // Vibrate for 1 second
digitalWrite(motorPin, LOW);
delay(59000); // Wait for 59 seconds
}
