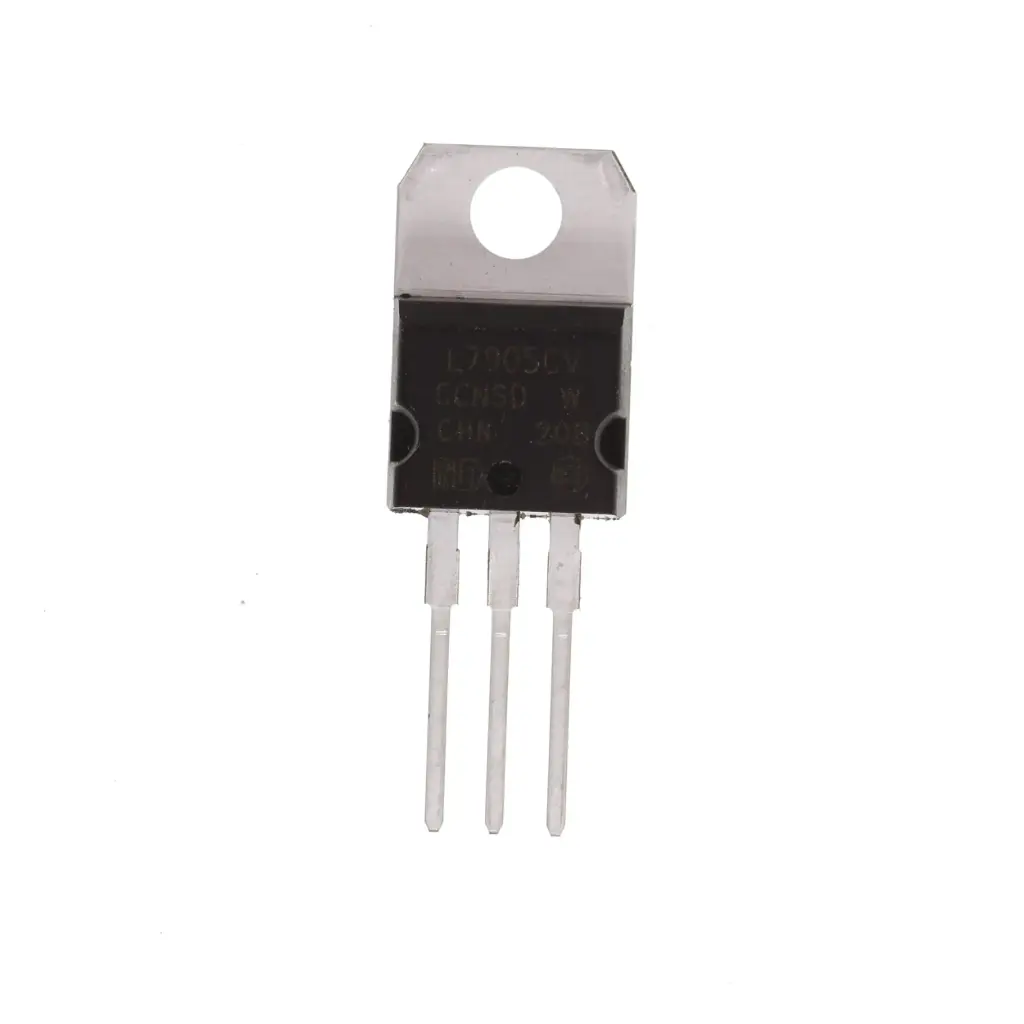

Regulator L7905 Negative 5v

The L7905 is a negative voltage regulator that provides a fixed output of -5V. It is commonly used in power supply circuits requiring a stable negative voltage rail. This regulator offers reliable performance with built-in overload protection, making it suitable for various electronic applications.

Package Includes:

1 x Regulator L7905 Negative 5V

3.15 AED Tax Included

This combination does not exist.

Add to cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

Fixed output voltage of -5V
Overload and thermal protection
High ripple rejection
Simple to use with minimal external components
TO-220 package for easy mounting and heat dissipation

Specifications:

Input Voltage Range: -7V to -35V
Output Voltage: -5V ± 2%
Output Current: Up to 1.5A
Dropout Voltage: Typically 2V
Operating Temperature: 0°C to 125°C
Package Type: TO-220

Applications:

Negative voltage power supplies
Operational amplifier power rails
Battery-powered devices
General-purpose negative voltage regulation
