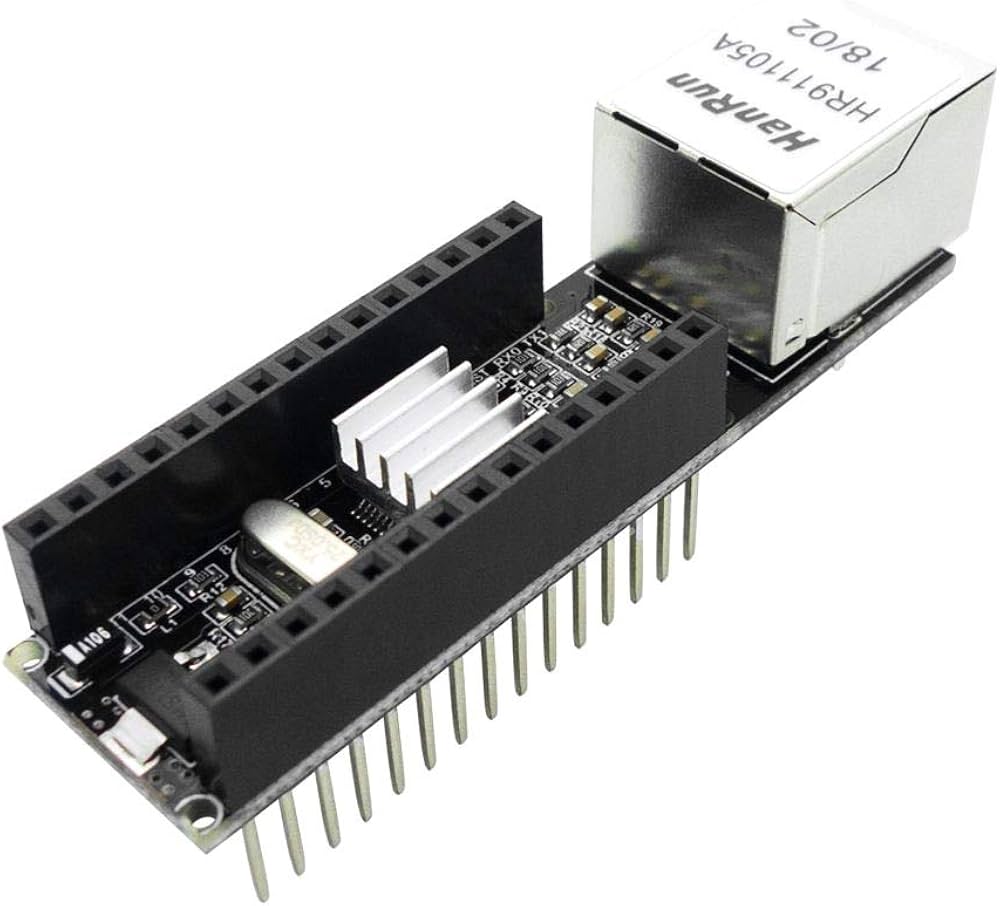

Ethernet Nano V3 Shield - W5500 (V2) RobotDYN

Ethernet Nano V3 Shield - W5500 (V2) RobotDYN

The Ethernet Shield W5500 is the ideal choice for building network-connected projects. It is equipped with the WizNet W5500 TCP/IP Ethernet controller, which integrates the TCP/IP stack, 10BaseT/100BaseTX Ethernet with full or half-duplex, MAC, and PHY. Using a high-speed SPI protocol (up to 80MHz), ensures fast and stable communication with the Arduino Nano.

Package Includes:

  • 1 x W5500 Ethernet Shield for Arduino Nano

82.95 AED 82.95 AED Tax Included
82.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



The shield also supports advanced features such as Wake on LAN (WOL) and Power Off modes for reduced energy consumption, making it efficient and versatile for IoT and automation projects.

Specifications:

  • Ethernet Controller: W5500
  • Shield: For Arduino Nano
  • Communication Protocol: SPI (up to 80MHz)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 65 × 17.8 mm

Pinout:

The shield communicates with Arduino boards via the SPI bus.

  • Arduino Nano / Uno: Pins 11 (MOSI), 12 (MISO), 13 (SCK), and 10 (SS)
  • Arduino Mega: Pins 50 (MISO), 51 (MOSI), 52 (SCK), and 10 (SS). Pin 53 must be kept as output.

Features:

  • Integrated TCP/IP stack, MAC, and PHY
  • Supports 10/100 Mbps Ethernet
  • Wake on LAN and power-saving modes
  • Compact size, designed for Arduino Nano
  • Stable and reliable Ethernet connectivity

Applications:

  • IoT Projects
  • Web Clients and Servers
  • Remote Data Logging
  • Smart Home Devices
  • Industrial Automation
