DC-DC Battery Charger MicroUSB Li-Ion Battery Charger

DC-DC Battery Charger MicroUSB Li-Ion Battery Charger

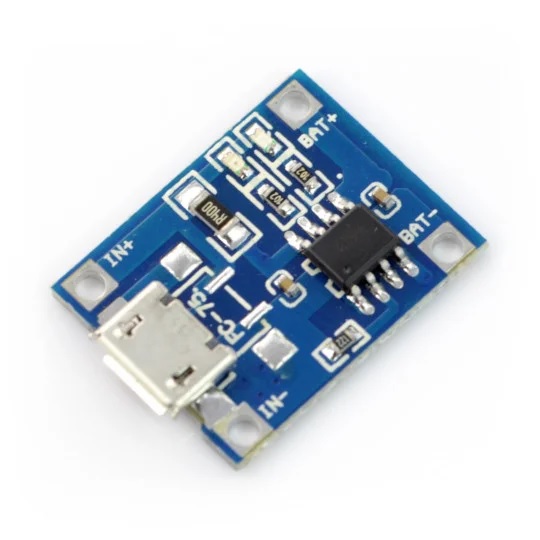

The Li-Ion Micro-USB Charger is a high-performance linear DC/DC charger, specially designed for charging single-cell lithium-ion and lithium polymer (Li-Ion/LiPo) batteries. Powered by the TP4056 charging chip, it ensures efficient, reliable, and safe charging, making it ideal for portable applications.

Package Includes:

  • 1 x Li-Ion Micro-USB Charger Module (TP4056) with XH cable

Battery Charger Module
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



This charger offers flexible power input options — either via the Micro-USB connector or through the IN+ / GND pins. For battery connections, you can use the XH power connector (XH cable included) or the dedicated BAT+ / BAT- outputs. The built-in charge indication system provides four clear states, allowing you to easily track the charging process.

Features:

  • Designed for charging single-cell Li-Ion / LiPo batteries
  • Integrated TP4056 chip ensures safe and efficient charging
  • Supports Micro-USB input or IN+ / GND pin input
  • Battery connection via XH connector or BAT+ / BAT- terminals
  • Advanced functions: current monitoring, voltage lock, auto-recharge
  • Dual status outputs for charging progress and input detection
  • Compact and portable, perfect for DIY and embedded projects

Specifications:

  • Input Voltage (Vin): 4.5V – 5.5V
  • Charging Voltage (Vcharge): 4.2V
  • Charging Current: 1A
  • Connection Interface: Micro-USB / IN+ & GND
  • Battery Output: XH connector / BAT+ & BAT- pins
  • Charging Chip: TP4056
