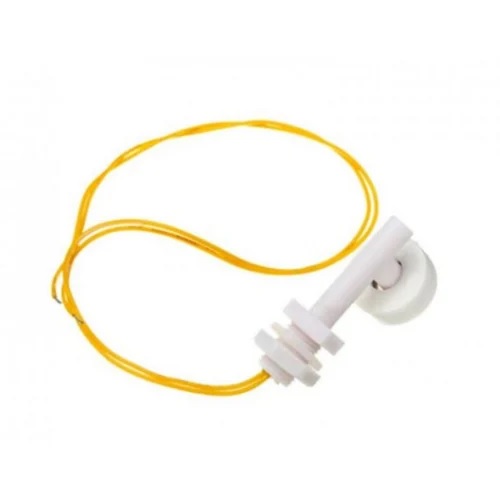

Water Level Angled Switch Sensor M12 54mm

Water Level Angled Switch Sensor M12 54mm

The Water Level Sensor Float Switch is a highly functional sensor designed to measure liquid levels within a tank accurately. This versatile device serves a variety of purposes, including triggering pumps, indicators, alarms, and other connected devices. Its compatibility with popular controllers like Raspberry Pi or Arduino expands its potential applications, making it a valuable component for automation and monitoring systems.

Package Includes:

  • 1 x Float Switch

36.75 AED 36.75 AED Tax Included
36.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Liqued Level Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  1. Simple Structure: The float switch boasts a straightforward design for easy installation and liquid level control. Its simplicity ensures minimal circuit complexity, reducing the risk of interference. The device remains reliable across different environments, provided appropriate material selection for liquid, pressure, or temperature conditions.
  2. High Reliability: With a lightweight build and a simple working principle, this float switch offers high reliability in liquid level sensing. It functions seamlessly without unnecessary complications, providing consistent and accurate results.
  3. Wide Applicability: The float level switch finds widespread use in electronic, electrical, chemical, water, and drainage applications. It serves both level control and alarm functions, making it an indispensable tool in various industrial and domestic settings.

Specifications:

  • Product Name: Float Switch
  • Max Contact Rating: 10W
  • Max Switching Voltage: 110V DC
  • Max Switching Current: 0.5A
  • Max Breakdown Voltage: 220V DC
  • Max Carry Current: 1.0A
  • Max Contact Resistance: 100mΩ
  • Temperature Rating: -10 ~ +60°C / 85°C
  • Float Ball Material: PP
  • Float Body Material: PP
  • Float Ball Size (Approx): 10 x 24mm (L*D)
  • Thread Diameter (Approx): M12
  • Body Total Length: 54mm
  • Cable Length: 37cm
  • Color: White; Yellow
  • Net Weight: 40g
