Nextion Hardware and Software Integration:
Nextion comprises both hardware and software components. The hardware consists of a series of TFT boards, and the software is represented by the Nextion editor. Streamlining communication, the Nextion TFT board utilizes a single serial port, eliminating wiring complexities. Recognizing the challenges engineers face in achieving satisfactory results during application development, the Nextion editor boasts an array of components, including buttons, text, progress bars, sliders, and instrument panels, enriching interface design. The drag-and-drop functionality significantly reduces programming time, alleviating 99% of development workloads. The What You See Is What You Get (WYSIWYG) editor makes GUI design a breeze.
Adaptation to Existing Projects:
Integrating Nextion family HMI into existing projects is effortless, requiring only a UART connection.
NX4024T032 – A Powerful 3.2" HMI:

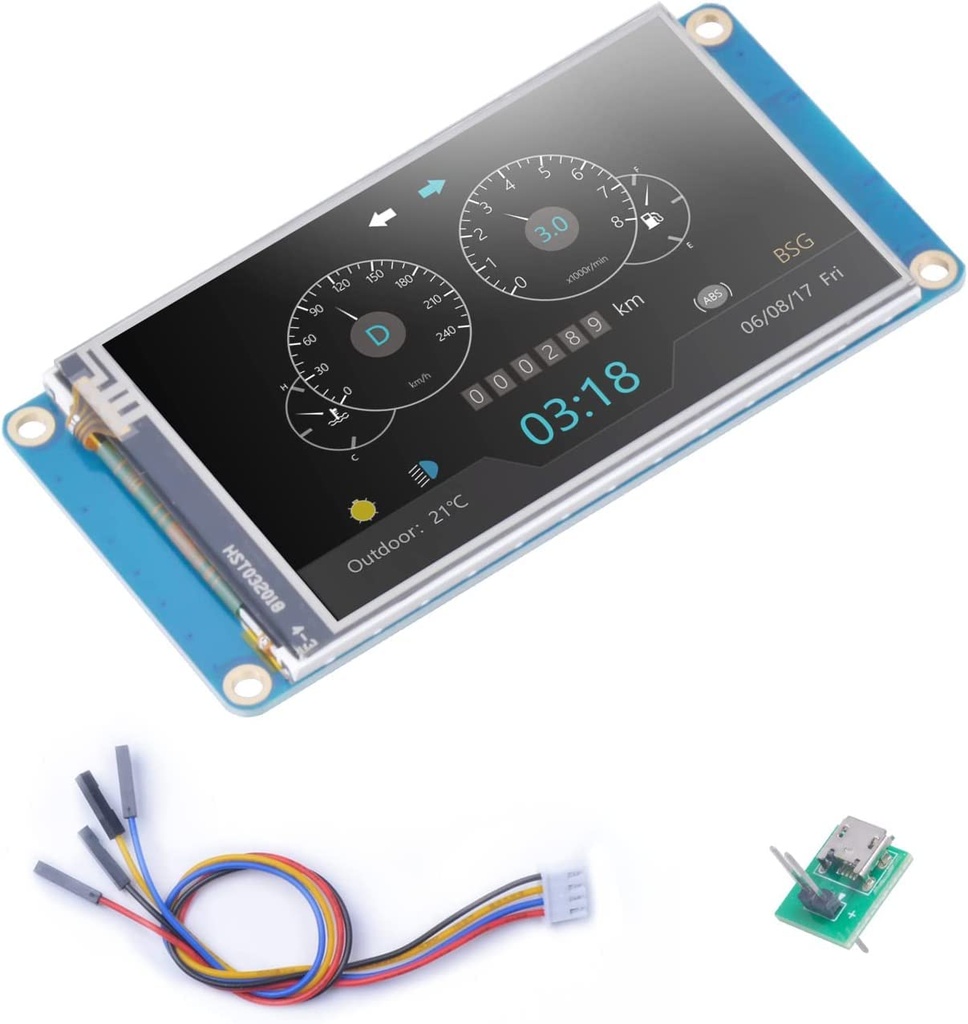

Meet the NX4024T032, a robust 3.2'' HMI member of the Nextion family. It features a 3.2" TFT 400x240 resistive touch screen display, 4M Flash, 2KByte RAM, and a vibrant 65k color display.
Features:
- 400 x 240 Resolution
- TFT Screen with integrated 4-wire Resistive Touch Panel
- RGB 65K true-to-life colors
- Easy 4-pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Recommended Power Supply: 5V, 500mA, DC
- Board Size: 95(L) × 47.6(W) × 5.8(H)
- Display Size: 3.2 Inch
- Weight: 53 gm
Nextion Editor Software:
- Free and Easy-to-Use Nextion HMI software
- ASCII text-based instructions over serial
- Assignable attribute value components at runtime
- Drag-and-Drop components for GUI design and interaction
- Built-in debugger for HMI project simulation
- User Event Code pane for GUI interaction and peripheral MCU communication
Nextion Hardware and Software Integration:
Nextion comprises both hardware and software components. The hardware consists of a series of TFT boards, and the software is represented by the Nextion editor. Streamlining communication, the Nextion TFT board utilizes a single serial port, eliminating wiring complexities. Recognizing the challenges engineers face in achieving satisfactory results during application development, the Nextion editor boasts an array of components, including buttons, text, progress bars, sliders, and instrument panels, enriching interface design. The drag-and-drop functionality significantly reduces programming time, alleviating 99% of development workloads. The What You See Is What You Get (WYSIWYG) editor makes GUI design a breeze.
Adaptation to Existing Projects:
Integrating Nextion family HMI into existing projects is effortless, requiring only a UART connection.
NX4024T032 – A Powerful 3.2" HMI:
Meet the NX4024T032, a robust 3.2'' HMI member of the Nextion family. It features a 3.2" TFT 400x240 resistive touch screen display, 4M Flash, 2KByte RAM, and a vibrant 65k color display.
Features:
- 400 x 240 Resolution
- TFT Screen with integrated 4-wire Resistive Touch Panel
- RGB 65K true-to-life colors
- Easy 4-pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Recommended Power Supply: 5V, 500mA, DC
- Board Size: 95(L) × 47.6(W) × 5.8(H)
- Display Size: 3.2 Inch
- Weight: 53 gm
Nextion Editor Software:
- Free and Easy-to-Use Nextion HMI software
- ASCII text-based instructions over serial
- Assignable attribute value components at runtime
- Drag-and-Drop components for GUI design and interaction
- Built-in debugger for HMI project simulation
- User Event Code pane for GUI interaction and peripheral MCU communication
