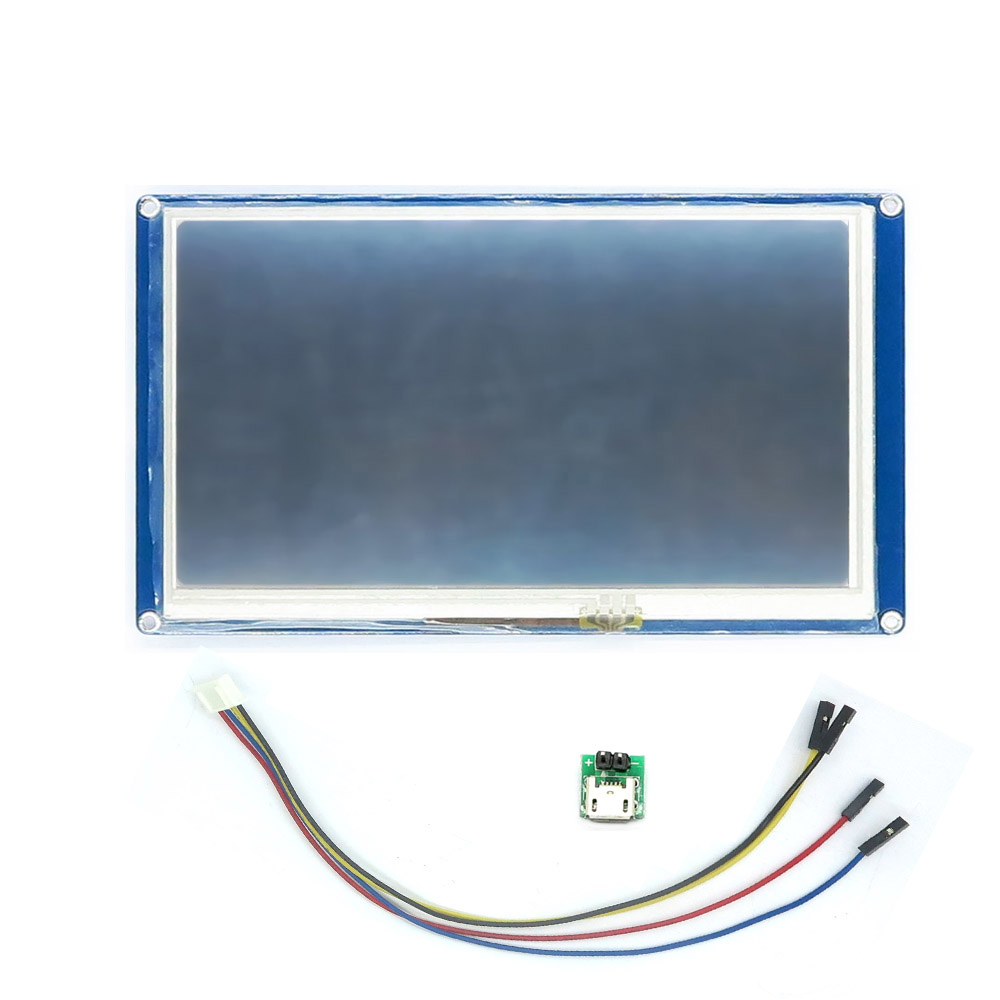

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate, letting users avoid the hassle of wiring. Most engineers spend much time on application development but get unsatisfactory results. As a solution, the Nextion editor has many components such as buttons, text, progress bars, sliders, and instrument panels to enrich interface design. Furthermore, the drag-and-drop function ensures that users spend less time programming, reducing 99% of development workloads. With the help of this WYSIWYG editor, designing a GUI is simple. It's easy to adapt the Nextion HMI to existing projects – you just need to provide a UART. This is a powerful 7.0'' HMI, which is a member of the Nextion family. Features include a 7.0" TFT 800x480 resistive touch screen display, M Flash, KByte RAM, and 5k colors.
Features:
- 800 x 480 Resolution
- RGB 5K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4-pin interface to any TTL Serial Host
- M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Visual Area: 54.08mm(L) × 85.9mm(W)
- Adjustable Brightness: 0~30 nit (interval of adjustment is %)
- Power Consumption: 5V 50mA
Nextion Editor Software:
- Free and Easy-to-Use Nextion HMI software
- ASCII text-based instructions over serial
- Assignable attribute value components at runtime
- Drag-and-Drop components for GUI design and interaction
- Built-in debugger for HMI project simulation
- User Event Code pane for GUI interaction and peripheral MCU communication
