Features:

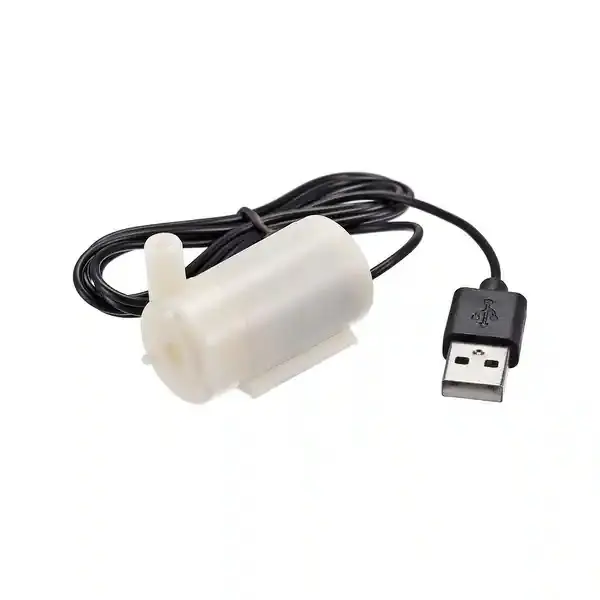

- USB-Powered Convenience: Connect directly to USB power supplies without extra wiring or adapters, ideal for Arduino and aquarium applications.
- Wide Voltage Range: Operates on DC 2.5V to 5V, providing flexibility with different power sources.
- Energy Efficient: Consumes only 130-220mA working current while maintaining strong performance.
- Strong Performance: Delivers a maximum lift height of 40-110cm (15.75"-43.4") and flow rate between 70-120L/H.
- Durable and Compact: Made with durable engineering plastic, featuring a compact design for easy installation in tight spaces.
Specifications:
- Voltage: DC 2.5-5V
- Working Current: 130-220mA
- Max Lift: 40-110cm (15.75"-43.4")
- Flow Rate: 70-120L/H
- Power Consumption: 0.4-1.5W
- Water Outlet Diameter (Outside): Approx. 7.5mm (0.3")
- Water Outlet Diameter (Inside): Approx. 4.7mm (0.18")
- Pump Diameter: Approx. 24mm (0.95")
- Length: Approx. 45mm (1.8")
- Height: Approx. 33mm (1.30")
- Wire Length: About 15-20cm
- Material: Engineering plastic
- Driving Mode: Brushless DC magnetic drive
- Continuous Working Life: 500 hours
Note:
This pump has a limited continuous working life of approximately 500 hours. For extended use, periodic maintenance or replacement is recommended. Always ensure correct voltage and current supply for optimal operation.
