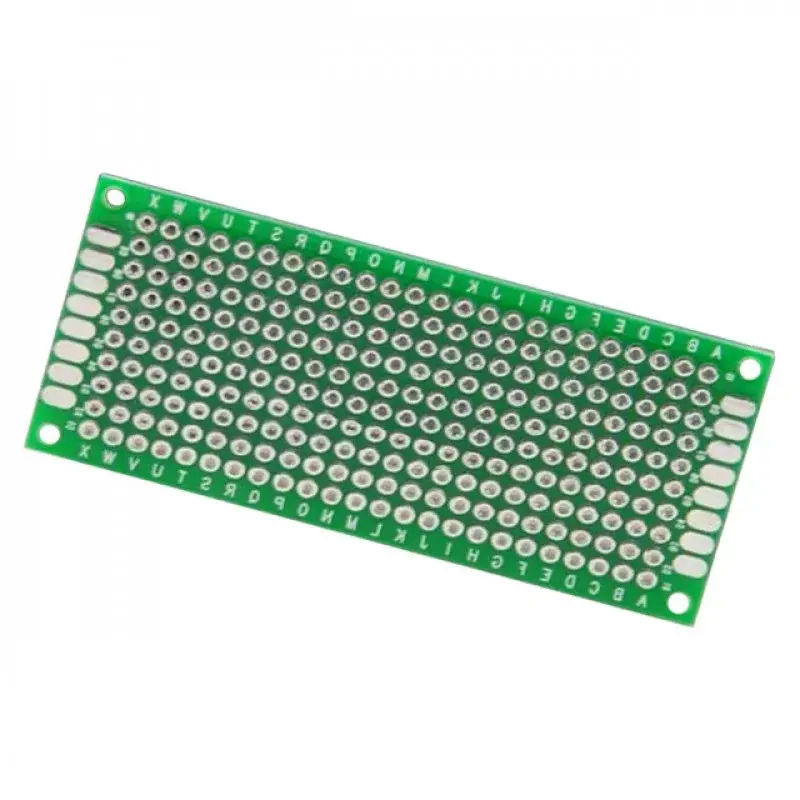

Prototype Double Side PCB Board 3x7 cm Universal Board Green

Prototype Double Side PCB Board 3x7 cm Universal Board Green

This double-sided copper prototype PCB is perfect for prototyping and experimental verification of electronic circuits. Designed for point-to-point DIY soldering, it provides a reliable platform for testing and developing circuit concepts. Whether you're working on a one-off unit or creating an initial design for mass production, this PCB ensures durability and precision for your project.

Package Includes

  • 1 x Double-Sided Copper Prototype PCB (3x7 cm)

5.25 AED 5.25 AED Tax Included
5.25 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Double-Sided Copper: Provides connectivity on both sides for flexible circuit layouts
  • Standard Hole Pitch: 2.54mm spacing between holes for compatibility with most components
  • Durable Material: High-quality copper plating ensures reliable electrical connections
  • Plated Through Holes: Simplifies connections between the top and bottom layers
  • Identical Sides: Both sides have the same layout, making soldering and assembly intuitive
  • Compact Size: 3x7 cm dimensions, ideal for small to medium-sized circuits
  • Versatile Applications: Suitable for DIY projects, prototyping, and small-scale production

Specifications

Parameter Specification
Dimensions 3 x 7 cm
Material Double-Sided Copper PCB
Hole Pitch Standard 2.54mm
Hole Points 10x24 grid
Plated Holes Yes
Side Layout Identical on both sides

Applications

  • Prototyping: Ideal for developing and testing electronic circuit designs
  • DIY Projects: Perfect for custom electronic builds and point-to-point soldering
  • Educational Use: A great tool for learning and practicing circuit assembly techniques
  • Small-Scale Production: Suitable for creating unitary electronics or single-use designs
