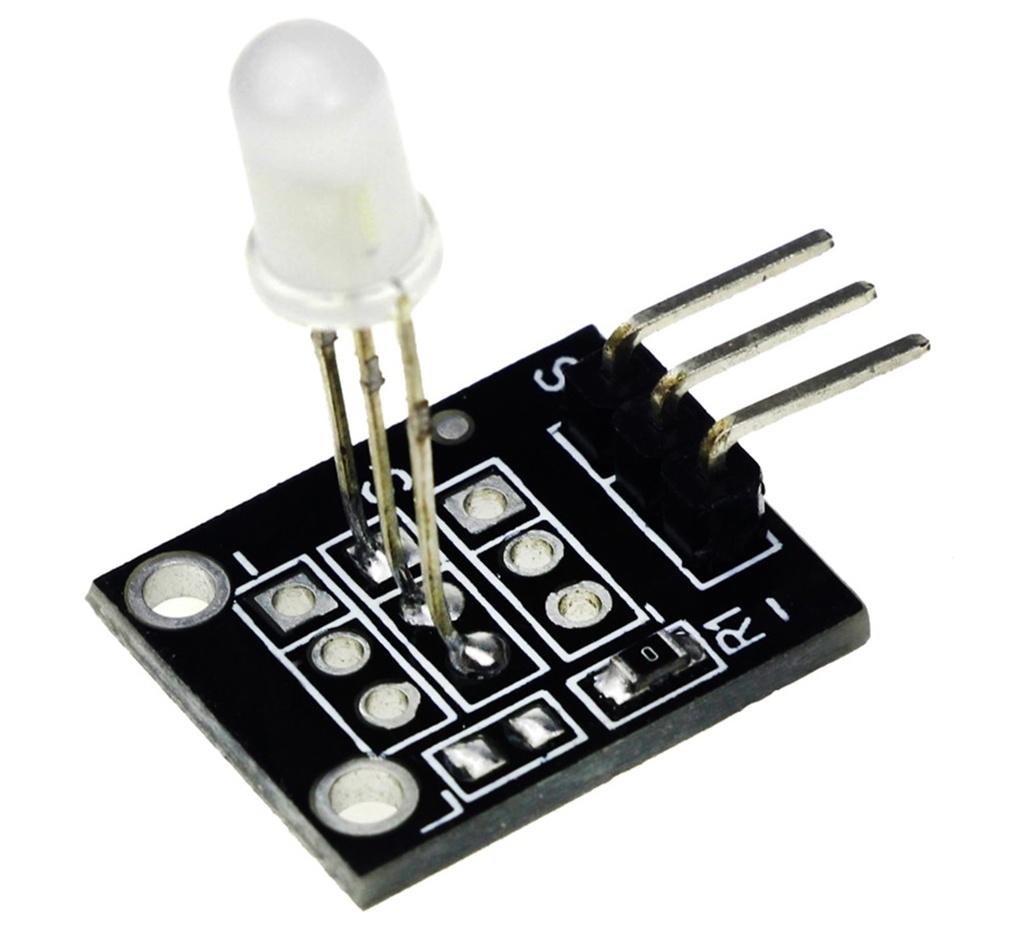

LED 2-Color Green Red CC Module KY-011
The KY-011 2-Color LED Module is a compact and reliable module featuring a common cathode Green-Red LED. It’s perfect for creating simple status indicators or dual-state logic displays in DIY projects and embedded systems. The onboard resistors simplify integration, allowing you to connect the module directly without the need for external components.
Package Includes
- 1 x KY-011 2-Color LED Module
Features
- Two-Color LED: Common cathode with green and red outputs.
- Compact Design: Suitable for space-limited applications.
- Built-In Resistors: Protects the LED from overcurrent.
- Wide Viewing Angle: 150° for excellent visibility.
- Easy Integration: Simple 3-pin interface for fast connections.
Specifications
| Parameter | Value |
|---|---|
| LED Color | Green + Red |
| LED Diameter | 5mm |
| LED Type | Diffusion |
| Voltage | 2.0 – 2.5 V |
| Current | 10 mA |
| Viewing Angle | 150° |
| Wavelength | Green: 571 nm; Red: 644 nm |
| Luminous Intensity | Green: 20–40 MCD; Red: 40–80 MCD |
| Lead Type | Long-legged |
Pinout
| Pin Label | Description |
|---|---|
| G (-) | Ground (Common Cathode) |
| R (S) | Red LED Anode Input |
| G (S) | Green LED Anode Input |
Applications
- Status indicators in embedded systems
- Logic-level state representation (on/off or true/false)
- Educational projects and prototyping
- DIY electronics for simple visual feedback
- Alert systems to indicate errors or operational states
Features
- Two-Color LED: Common cathode with green and red outputs.
- Compact Design: Suitable for space-limited applications.
- Built-In Resistors: Protects the LED from overcurrent.
- Wide Viewing Angle: 150° for excellent visibility.
- Easy Integration: Simple 3-pin interface for fast connections.
Specifications
| Parameter | Value |
|---|---|
| LED Color | Green + Red |
| LED Diameter | 5mm |
| LED Type | Diffusion |
| Voltage | 2.0 – 2.5 V |
| Current | 10 mA |
| Viewing Angle | 150° |
| Wavelength | Green: 571 nm; Red: 644 nm |
| Luminous Intensity | Green: 20–40 MCD; Red: 40–80 MCD |
| Lead Type | Long-legged |
Pinout
| Pin Label | Description |
|---|---|
| G (-) | Ground (Common Cathode) |
| R (S) | Red LED Anode Input |
| G (S) | Green LED Anode Input |
Applications
- Status indicators in embedded systems
- Logic-level state representation (on/off or true/false)
- Educational projects and prototyping
- DIY electronics for simple visual feedback
- Alert systems to indicate errors or operational states
