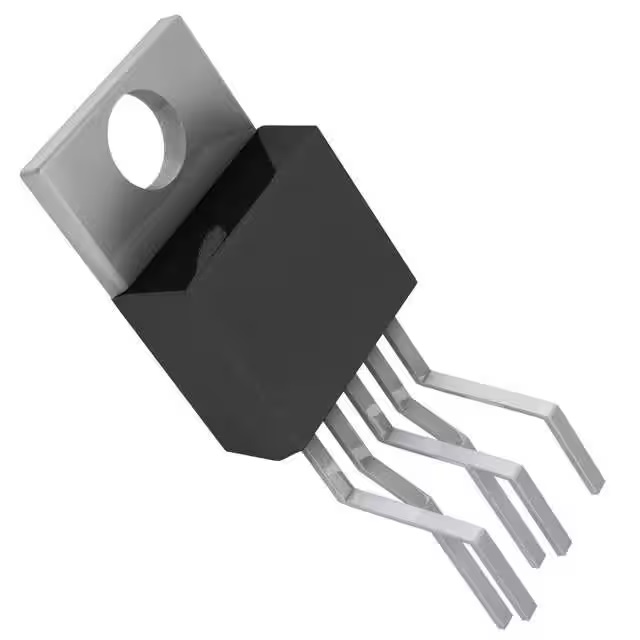

IC High Power Switch BTS442E2

IC High Power Switch BTS442E2

This device is an N-channel vertical power FET integrated with a charge pump, ground-referenced CMOS-compatible input, and diagnostic feedback, built on Infineon’s Smart SIPMOS® chip-on-chip technology. It provides embedded protective functions and is designed to replace electromechanical relays and discrete switching circuits.
21.00 AED 21.00 AED Tax Included
21.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features

  • Overload protection
  • Current limitation
  • Short-circuit protection
  • Thermal shutdown
  • Overvoltage protection (including load dump)
  • Fast demagnetization of inductive loads
  • Reverse battery protection
  • Undervoltage and overvoltage shutdown with auto-restart and hysteresis
  • Open-drain diagnostic output
  • Open-load detection in ON-state
  • CMOS-compatible input
  • Loss of ground and loss of Vbb protection
  • Electrostatic discharge (ESD) protection
  • Green product (RoHS compliant)
  • AEC qualified

Specifications

Item Attribute Value
Product Category Power Switch ICs - Power Distribution
Type High Side
Number of Outputs 1 Output
Output Current 21 A
Current Limitation 70 A
On Resistance (Max) 18 mΩ
Switch-On Time (Max) 350 µs
Shutdown Time (Max) 130 µs
Operating Supply Voltage 4.5 V to 42 V
Operating Temperature Range -40°C to +150°C
Installation Type SMD / SMT
Package TO-263-5 (D²PAK-5)
Packing Cut Tape / Reel
Product Power Switches
Trademark Infineon Technologies
Moisture Sensitive Yes
Power Dissipation (Pd) 167 W
Subcategory Switch ICs
Supply Voltage (Max) 42 V
Supply Voltage (Min) 4.5 V

Applications

  • Microcontroller-compatible power switch with diagnostic feedback for 12V and 24V DC grounded loads
  • Control of resistive, inductive, and capacitive loads
  • Replacement for electromechanical relays and discrete protection circuits
