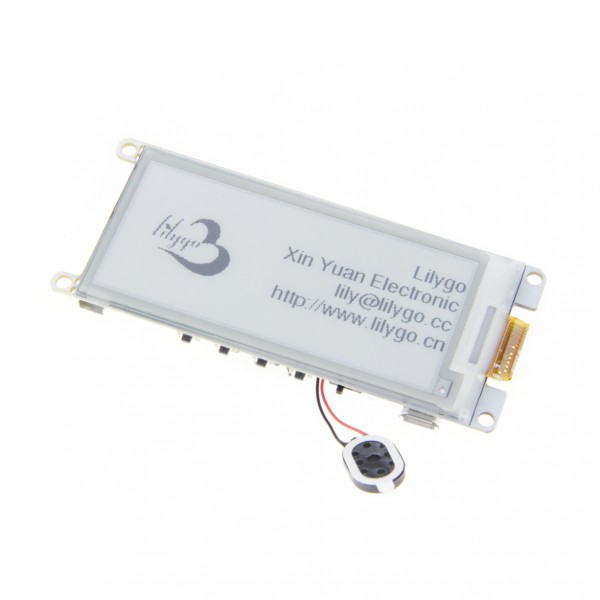

ESP32 T5 V2.2 Module With 2.9 inch E-Paper E-ink TTGO
The TTGO T5 from LilyGO is a development board based on the ESP32 microcontroller. It features a 2.9-inch black-and-white E-paper (E-ink) display, ideal for low-power applications with excellent visibility in various lighting conditions. With built-in WiFi, Bluetooth, battery charging circuitry, and support for multiple interfaces, this board is perfect for IoT, portable, and embedded projects.
Package Includes
- 1 × ESP32 T5 V2.2 Module with 2.9-inch E-Paper E-ink TTGO
Features
- ESP32 dual-core processor, up to 240MHz.
- 2.9-inch E-paper (E-ink) display for ultra-low-power operation.
- CP2104 USB-to-serial converter for easy programming.
- Built-in WiFi and Bluetooth connectivity.
- 4MB Flash memory and 8MB PSRAM.
- Integrated Li-ion/Li-Po battery charging circuit (TP4054, max 500mA).
- Micro SD card slot for external storage.
- Onboard speaker (8Ω, 1W).
- I2C interface with 5-pin JST-PH connector (cable included).
- Compact design supporting 3.3V logic levels.
Specifications
Main Board
| Feature | Details |
|---|---|
| Microcontroller | ESP32 D0WDQ06 |
| Processor Speed | Up to 240MHz (dual-core) |
| Flash Memory | 4MB |
| PSRAM | 8MB |
| Connectivity | WiFi (802.11b/g/n), Bluetooth v4.2 |
| Power Input | Micro USB |
| Battery Connector | 2-pin Molex Picoblade |
| Speaker | 8Ω, 1W |
Display Specifications
| Feature | Details |
|---|---|
| Part Number | 2.9-inch E-paper |
| Colors | Black-and-white |
| Resolution | 296 × 128 pixels |
| Display Size | 66.89 × 29.05 mm |
| Outline Dimensions | 79.0 × 36.7 mm |
| Full Update Time | 2 seconds |
| Partial Refresh Time | 0.3 seconds |
| Interface | SPI |
| Gray Levels | 2 |
Pinout
Applications
- Low-power IoT devices
- Smart home automation
- Weather stations with real-time data display
- E-book readers and portable devices
- Industrial and retail signage
- Battery-powered portable electronics
Features
- ESP32 dual-core processor, up to 240MHz.
- 2.9-inch E-paper (E-ink) display for ultra-low-power operation.
- CP2104 USB-to-serial converter for easy programming.
- Built-in WiFi and Bluetooth connectivity.
- 4MB Flash memory and 8MB PSRAM.
- Integrated Li-ion/Li-Po battery charging circuit (TP4054, max 500mA).
- Micro SD card slot for external storage.
- Onboard speaker (8Ω, 1W).
- I2C interface with 5-pin JST-PH connector (cable included).
- Compact design supporting 3.3V logic levels.
Specifications
Main Board
| Feature | Details |
|---|---|
| Microcontroller | ESP32 D0WDQ06 |
| Processor Speed | Up to 240MHz (dual-core) |
| Flash Memory | 4MB |
| PSRAM | 8MB |
| Connectivity | WiFi (802.11b/g/n), Bluetooth v4.2 |
| Power Input | Micro USB |
| Battery Connector | 2-pin Molex Picoblade |
| Speaker | 8Ω, 1W |
Display Specifications
| Feature | Details |
|---|---|
| Part Number | 2.9-inch E-paper |
| Colors | Black-and-white |
| Resolution | 296 × 128 pixels |
| Display Size | 66.89 × 29.05 mm |
| Outline Dimensions | 79.0 × 36.7 mm |
| Full Update Time | 2 seconds |
| Partial Refresh Time | 0.3 seconds |
| Interface | SPI |
| Gray Levels | 2 |
Pinout
Applications
- Low-power IoT devices
- Smart home automation
- Weather stations with real-time data display
- E-book readers and portable devices
- Industrial and retail signage
- Battery-powered portable electronics
