  3. ESP32 T-Lite ESP32 W5500 0.96 Inch OLED Type-C USB Development Board TTGO
Default
ESP32 T-Lite ESP32 W5500 0.96 Inch OLED Type-C USB Development Board TTGO

ESP32 T-Lite ESP32 W5500 0.96 Inch OLED Type-C USB Development Board TTGO

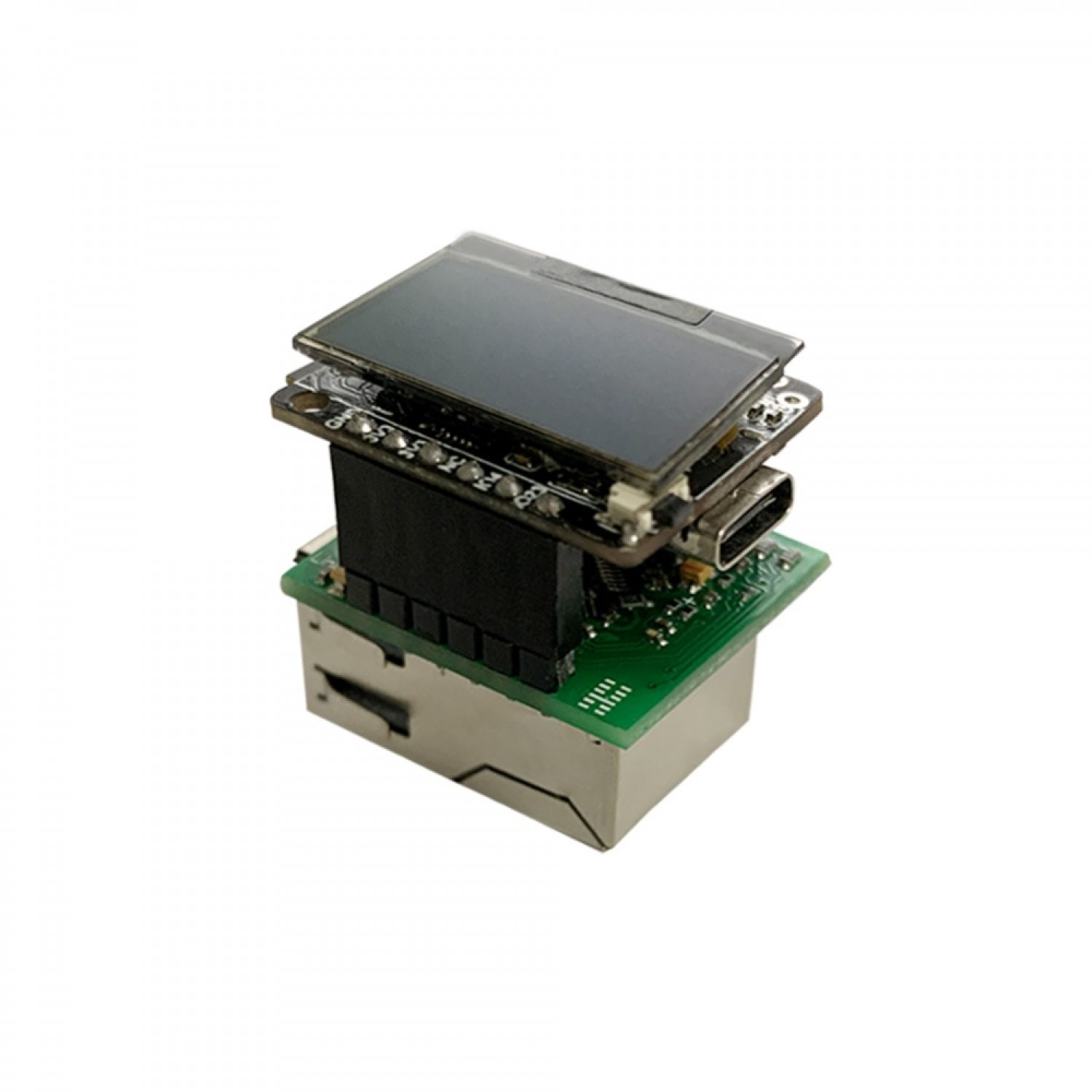

The LilyGO TTGO T-Lite W5500 is a microcontroller based on the TTGO T-Micro32 (ESP32). It features an OLED display on the back and can optionally be paired with a W5500 Ethernet module (not included) for both Ethernet and Wi-Fi connectivity. The board includes a USB-C port for programming or power, with a built-in USB-to-serial converter for easy programming similar to an Arduino (USB-C cable not included).

Package Includes

  • 1 x TTGO T-Lite W5500 Development Board
  • 2 x Female Pin Headers

93.45 AED 93.45 AED Tax Included
93.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Integrated ESP32 SoC: Dual-core processor with built-in Wi-Fi and Bluetooth.
  • OLED Display: 0.96-inch screen with SSD1306 driver for visual output.
  • Ethernet Connectivity: Availability to connected with W5500 module via SPI-based Ethernet (W5500 not included).
  • Multiple GPIOs: Easy access to SPI, ADC, touch inputs, and more.
  • Compact Design: Small form factor for space-constrained projects.
  • Wide Temperature Range: Operates from -40°C to +85°C.
  • Certifications: FCC, CE-RED, IC, TELEC, KCC, SRRC, NCC.

Specifications

Category Details
Processor ESP32 dual-core Wi-Fi and Bluetooth SoC with 520KB SRAM
Storage 4MB Flash
Display 0.96-inch OLED (SSD1306 driver)
Connectivity 802.11 b/g/n Wi-Fi 4, Bluetooth, SPI-based Ethernet (W5500)
Antenna Ceramic onboard or external (selectable via resistor)
USB Interface USB Type-C with CP2104 USB-to-TTL chip
GPIOs 14 pins (8+6 header) with SPI, ADC, Touch, 5V, 3.3V, GND
Operating Voltage 2.7V – 3.6V
Power Supply 5V/1A via USB-C port
Temperature Range -40°C to +85°C
Dimensions 29.5 x 23.8 mm
Weight 4.5 grams
Certifications FCC, CE-RED, IC, TELEC, KCC, SRRC, NCC

Pinout

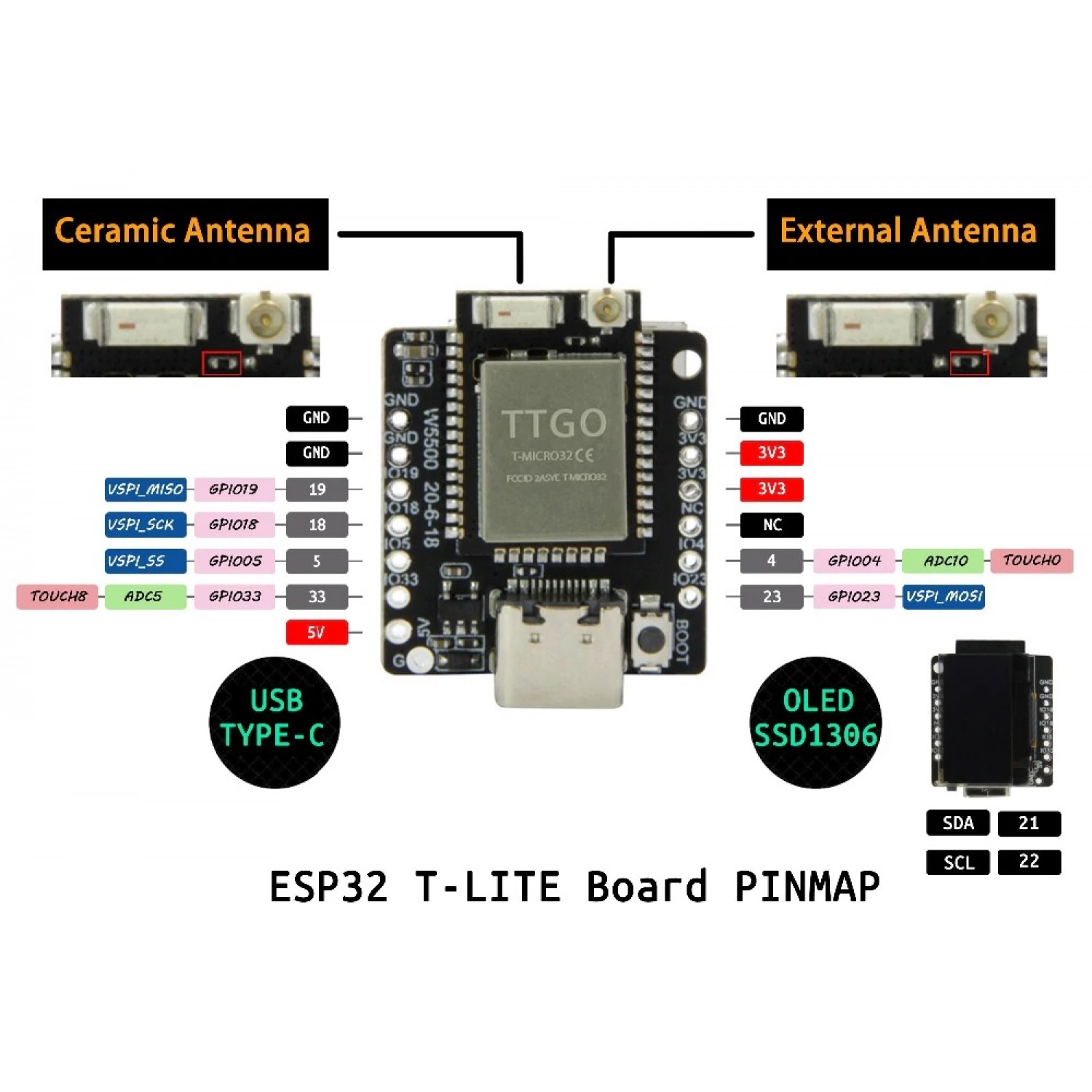

TTGO T-Lite W5500 Pinout

Pin Function Description
5V Power 5V input/output
3.3V Power 3.3V input/output
GND Ground Ground connection
GPIOs Digital/Analog Configurable I/O pins
SPI SPI Interface SPI communication
ADC Analog Input Read analog signals
Touch Capacitive Input Touch-sensitive input pins
ETH_RST GPIO 4 Ethernet reset
ETH_CS GPIO 5 Ethernet chip select
ETH_SCLK GPIO 18 Ethernet SPI clock
ETH_MISO GPIO 23 Ethernet SPI MISO (Master In Slave Out)
ETH_MOSI GPIO 19 Ethernet SPI MOSI (Master Out Slave In)
OLED_SCL GPIO 22 OLED display clock line
OLED_SDA GPIO 21 OLED display data line

Applications

  • IoT gateways and hubs
  • Smart home automation
  • Industrial monitoring and control systems
  • Real-time environmental data monitoring
  • Prototyping and educational projects
  • Networking and communication applications
