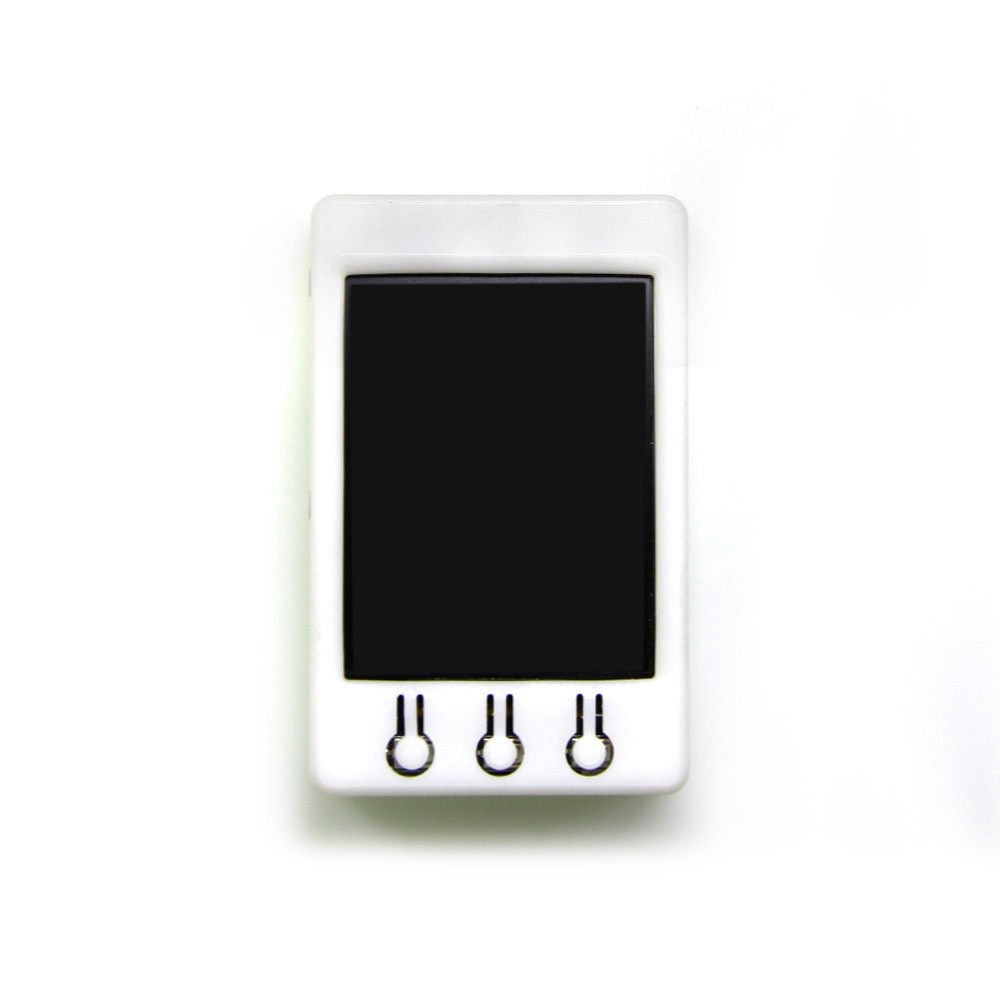

ESP32 T-Watcher 8M IP5306 Development Board with 2.2inch TFT TTGO

ESP32 T-Watcher 8M IP5306 Development Board with 2.2inch TFT TTGO

The TTGO T-Watcher ESP32 is a versatile development board designed for IoT, embedded systems, and electronic projects. It features an ESP32 chipset, a 2.2-inch TFT display, and advanced connectivity options. With support for multiple interfaces and protocols, this module is suitable for prototyping, portable devices, and commercial applications. Its built-in battery management system and low-power operation make it ideal for energy-efficient projects.

Package Includes

  • 1 x TTGO T-Watcher ESP32 Module with 2.2-inch TFT Display
  • 1 x Cable

236.25 AED 236.25 AED Tax Included
236.25 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • High Performance: Dual-core ESP32 processor at 240 MHz.
  • Integrated Display: 2.2-inch TFT screen (240x320) for rich visuals and UI design.
  • Flexible Connectivity: Wi-Fi, Bluetooth v4.2, UART, SPI, I2C, SDIO.
  • Low Power Operation: Managed via IP5306 I2C power management IC.
  • Customizable Development: Compatible with FreeRTOS and SDKs for firmware and cloud integration.
  • Wide Temperature Range: Operates from -40℃ to +85℃.
  • Compact Design: Small, lightweight, and easy to integrate.

Specifications

Hardware

Feature Details
Chipset ESPRESSIF-ESP32 240 MHz Xtensa® dual-core LX6
Flash Memory QSPI flash, up to 64MB
SRAM 520KB SRAM, 8MB PSRAM
Display 2.2-inch TFT (ILI9341, 240x320 resolution)
USB to TTL CP2104
Buttons Reset, Boot, GPIO (IO37, IO38, IO39)
Interfaces UART, SPI, I2C, SDIO, ADC, DAC, GPIO
Audio Amplifier NS4148
Clock 40 MHz crystal oscillator
Power 3.7V Lithium Battery, 5V/2A USB Type-C
Dimensions 66.7 x 42.59 x 12.5 mm
Weight 20.23g

Wi-Fi

Feature Details
Protocol 802.11 b/g/n (up to 150 Mbps)
Frequency Range 2.4GHz ~ 2.5GHz
Transmission Power 22 dBm
Range Up to 300 meters

Bluetooth

Feature Details
Version Bluetooth v4.2 BR/EDR and BLE standard
Sensitivity -98dBm NZIF receiver

Applications

  • IoT Devices: Smart home systems, industrial IoT, wearables.
  • Prototyping: Proof-of-concept designs.
  • Portable Devices: Low-power, battery-operated gadgets.
  • Embedded Systems: Advanced microcontroller projects.
  • Educational Tools: Learning and teaching IoT and embedded systems.
