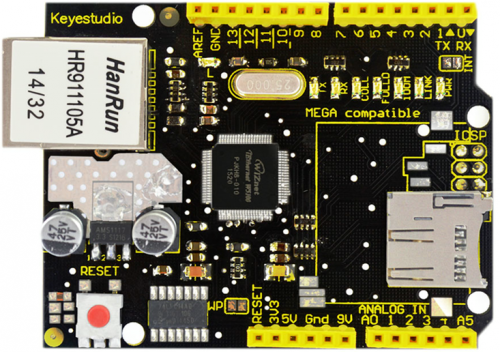

Keyestudio W5100 Ethernet Shield
The Keyestudio W5100 Ethernet Shield provides Arduino boards with easy internet connectivity, allowing you to turn your projects into web servers or remotely control inputs and outputs. Fully compatible with the Arduino Ethernet Library, this shield also features a micro SD card slot for file storage and network serving, making it ideal for IoT projects and web-based data logging.
Package Includes
- 1 x Keyestudio W5100 Ethernet Shield
Features
- Convert Arduino into a web server or enable remote I/O control.
- Compatible with Arduino Uno and Mega boards.
- Supports TCP/IP protocols for seamless network communication.
- Built-in micro SD card slot (TF card) for storing and serving files.
- LED indicators for connection, power, communication, and status monitoring.
- Integrated D13 LED for additional feedback.
- Reset button for easy shield restart.
- Configurable MAC address for network projects.
Specifications
| Category | Specification |
|---|---|
| Dimensions | 73mm x 54mm x 29mm |
| Weight | 25.4g |
| Micro SD Card Slot | Supports read/write of TF cards |
| Compatibility | Arduino Uno and Mega |
| Network Connector | Supports TCP/IP protocols |
| LED Indicators | Power, network connection, communication, speed, collision statuses |
| Reset Button | Yes |
Pinout
| Pin | Function |
|---|---|
| D10 | SPI Chip Select (CS) for W5100 Ethernet controller |
| D11 | SPI MOSI (Master Out Slave In) |
| D12 | SPI MISO (Master In Slave Out) |
| D13 | SPI Clock (SCK) |
| D4 | SPI Chip Select (CS) for SD card |
| RESET | Reset pin for the shield |
| GND | Ground connection |
| 5V | Power input (regulated internally to 3.3V) |
| RX/TX | Reserved for serial communication (not used by W5100) |
Additional Information
- Shared SPI Bus: W5100 Ethernet controller and SD card share SPI; only one device should be active at a time (CS D10 for Ethernet, CS D4 for SD card).
- Arduino Mega SPI: Hardware SPI pins are on the ICSP header (MISO, MOSI, SCK).
LED Functions
- L (D13 LED): Lights HIGH, off LOW.
- PWR: Indicates power status.
- LINK: On when network is connected; flashes during data transfer.
- 100M: Indicates 100 Mbps network connection.
- FULLD: Full-duplex communication indicator.
- COLL: Flashes when a network conflict is detected.
- RX: Flashes when receiving data.
- TX: Flashes when sending data.
Applications
- IoT (Internet of Things) projects
- Web servers using Arduino
- Remote monitoring and control of sensors and devices
- Data logging and file serving via micro SD card
