Keyestudio Dot Matrix 8x16 LED Board With PH 2.54 Connector +4Pin Cable KS0357

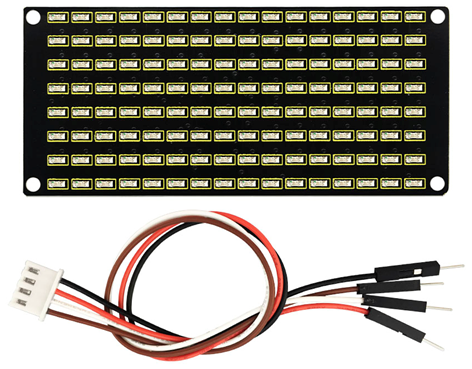

The Keyestudio Dot Matrix 8x16 LED Board is a compact display module featuring 128 bright LEDs arranged in an 8x16 grid. Powered by the AIP1640 chip, it supports I2C communication for easy integration with microcontrollers. With programmable brightness, secure mounting holes, and an included HX-2.54 4Pin cable, this LED board is perfect for custom displays, scrolling messages, and interactive projects.
Package Includes
- 1 x 8x16 LED Matrix Board (4mm pitch)
- 1 x HX-2.54 4Pin Cable
Features
- Bright 8x16 LED Grid: Displays text, graphics, and animations clearly.
- AIP1640 Chip Control: Simplifies LED management via I2C protocol.
- 4Pin Interface: GND, VCC, SDA, and SCL for straightforward connection.
- Adjustable Brightness: Control brightness through your code.
- Sturdy Build: 2.2mm fixed mounting holes for secure installation.
- Easy Wiring: Includes HX-2.54 4Pin cable for hassle-free integration.
Specifications
| Specification | Details |
|---|---|
| LED Arrangement | 8x16 grid (128 LEDs) |
| Control Chip | AIP1640 |
| Communication Interface | I2C (GND, VCC, SDA, SCL) |
| Brightness Adjustment | Programmable in code |
| Connector Type | HX-2.54 4Pin |
| Mounting Holes | 4 holes, 2.2mm diameter |
| LED Pitch | 4mm |
| Dimensions | Compact and easy to integrate |
Pinout
| Pin | Function | Description |
|---|---|---|
| GND | Ground | Connect to ground of the power supply. |
| VCC | Power Supply | Connect to 5V power input. |
| SDA | Data Line | I2C data line for communication. |
| SCL | Clock Line | I2C clock line for synchronization. |
Applications
- Custom text and graphic displays
- Scrolling message boards
- IoT interfaces and data visualization
- Educational and prototyping projects
- Interactive devices and animations
Features
- Bright 8x16 LED Grid: Displays text, graphics, and animations clearly.
- AIP1640 Chip Control: Simplifies LED management via I2C protocol.
- 4Pin Interface: GND, VCC, SDA, and SCL for straightforward connection.
- Adjustable Brightness: Control brightness through your code.
- Sturdy Build: 2.2mm fixed mounting holes for secure installation.
- Easy Wiring: Includes HX-2.54 4Pin cable for hassle-free integration.
Specifications
| Specification | Details |
|---|---|
| LED Arrangement | 8x16 grid (128 LEDs) |
| Control Chip | AIP1640 |
| Communication Interface | I2C (GND, VCC, SDA, SCL) |
| Brightness Adjustment | Programmable in code |
| Connector Type | HX-2.54 4Pin |
| Mounting Holes | 4 holes, 2.2mm diameter |
| LED Pitch | 4mm |
| Dimensions | Compact and easy to integrate |
Pinout
| Pin | Function | Description |
|---|---|---|
| GND | Ground | Connect to ground of the power supply. |
| VCC | Power Supply | Connect to 5V power input. |
| SDA | Data Line | I2C data line for communication. |
| SCL | Clock Line | I2C clock line for synchronization. |
Applications
- Custom text and graphic displays
- Scrolling message boards
- IoT interfaces and data visualization
- Educational and prototyping projects
- Interactive devices and animations
