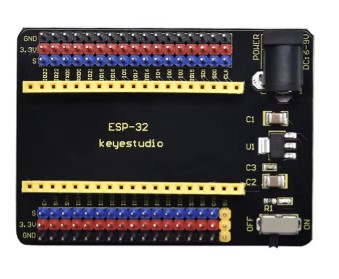

Keyestudio ESP32-IO Expansion Shield (Black and Eco-friendly) KS0465
The Keyestudio ESP32-IO Shield is an expansion board designed for seamless integration with the Keyestudio ESP32 Core Board. It brings out all the pins of the ESP32 Core Board via 2.54mm pin headers, enabling easy connectivity with sensors and modules. Additionally, it provides a stable 3.3V DC power supply, a convenient power supply circuit, and features like a DIP switch and standard DC jack for efficient operation.
Package Includes
- 1 × Keyestudio ESP32-IO Shield
Features
- Compatible with the Keyestudio ESP32 Core Board.
- Brings out all ESP32 Core Board pins via 2.54mm pin headers.
- Two rows of 2.54mm pin headers for easy sensor/module connections.
- Provides stable 3.3V DC output for external sensors or modules.
- Built-in power supply circuit for the ESP32 Core Board.
- DIP switch for power control.
- Standard DC jack for 7–12V voltage input.
- Compact design for project integration.
- ROHS-compliant environmental attributes.
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | DC 7–12V |
| Working Current | 60mA |
| Maximum Power | 0.3W |
| Operating Temperature | -25℃ to +65℃ |
| Dimensions | 30 × 20mm |
| Environmental Attributes | ROHS |
Pinout
- 2.54mm Pin Headers: Brings out all ESP32 Core Board pins for easy access.
- Power Output Pin Headers: Provides DC 3.3V for powering sensors or modules.
- DC Jack: Supports 7–12V input voltage range.
- DIP Switch: Controls power supply to the ESP32 Core Board.
Applications
- Prototyping IoT projects.
- Connecting sensors and modules for data collection.
- Powering external sensors and devices.
- Educational and research purposes.
- Home automation and smart devices.
Features
- Compatible with the Keyestudio ESP32 Core Board.
- Brings out all ESP32 Core Board pins via 2.54mm pin headers.
- Two rows of 2.54mm pin headers for easy sensor/module connections.
- Provides stable 3.3V DC output for external sensors or modules.
- Built-in power supply circuit for the ESP32 Core Board.
- DIP switch for power control.
- Standard DC jack for 7–12V voltage input.
- Compact design for project integration.
- ROHS-compliant environmental attributes.
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | DC 7–12V |
| Working Current | 60mA |
| Maximum Power | 0.3W |
| Operating Temperature | -25℃ to +65℃ |
| Dimensions | 30 × 20mm |
| Environmental Attributes | ROHS |
Pinout
- 2.54mm Pin Headers: Brings out all ESP32 Core Board pins for easy access.
- Power Output Pin Headers: Provides DC 3.3V for powering sensors or modules.
- DC Jack: Supports 7–12V input voltage range.
- DIP Switch: Controls power supply to the ESP32 Core Board.
Applications
- Prototyping IoT projects.
- Connecting sensors and modules for data collection.
- Powering external sensors and devices.
- Educational and research purposes.
- Home automation and smart devices.
