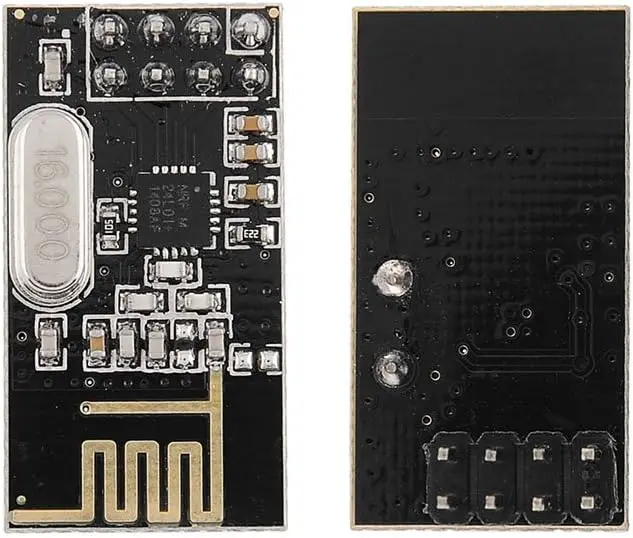

Keyestudio NRF24L01 2.4Ghz Wireless Network Module
The NRF24L01 wireless module is a single-chip wireless transceiver operating in the 2.4-2.5GHz ISM band. It offers seamless wireless communication with configurable output power, channel selection, and protocol settings via its SPI interface. Powered by a 3.3V DC supply, it supports bidirectional communication with a maximum transmission power of 0 dBm and a data transfer rate up to 2000 kbps. Its curved antenna ensures reliable communication over 20-25 meters in open environments.
Package Includes
- 1 x NRF24L01 Module
Features
- Single-chip wireless transceiver operating in the 2.4-2.5GHz ISM band
- SPI interface for configuring output power, channels, and protocol parameters
- DC 3.3V power supply
- Maximum transmission power: 0 dBm
- Maximum data transfer rate: 2000 kbps
- Functions as both transmitter and receiver for bidirectional communication
- Operating modes: transmit, receive, and power-down
- Curved antenna preset at 0 dBm for enhanced range
- Open field communication distance: 20-25 meters
- Ideal for wireless communication links between devices
Specifications
- Supply voltage: DC 3.3V
- Maximum transmit power: 0 dBm
- Maximum data transfer rate: 2000 kbps
- Current consumption in transmit mode (0 dBm): 11.3 mA
- Current consumption in receive mode (2000 kbps): 12.3 mA
- Receiving sensitivity at 1000 kbps: -85 dBm
- Current consumption in power-down mode: 900 nA
- Dimensions: 29mm x 16mm x 13mm
Pinout
