Specifications

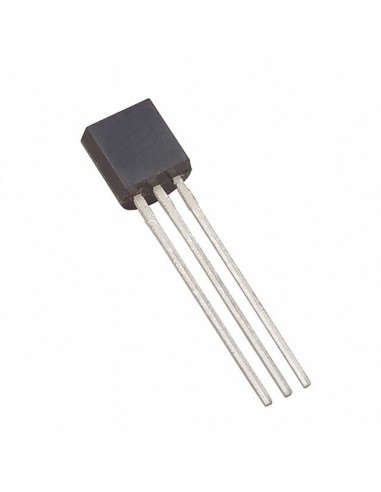

- Package Type: TO-92
- Transistor Type: NPN
- Max Collector Current (IC): 150mA
- Max Collector-Emitter Voltage (VCE): 50V
- Max Collector-Base Voltage (VCB): 60V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 400mW
- Max Transition Frequency (fT): 80 MHz
- DC Current Gain (hFE): 70 – 700
- Storage & Operating Temperature: -55°C to +150°C
Usage
The C1815 transistor is suitable for use in audio amplification stages, small audio amplifiers (driving small speakers), and preamplifier circuits. It can also be used as a switch in electronic circuits to drive loads under 150mA, such as relays, low-power LEDs, other transistors, and circuit modules. Additionally, it can be used in Darlington pair configurations to achieve higher current gain.
Applications
- Sensor circuits
- Audio preamplifiers
- Audio amplifier stages
- Switching loads under 150mA
- RF circuits
Safe Operating Guidelines
For long-term reliable performance, do not exceed the 150mA collector current or the maximum voltage ratings. Always use an appropriate base resistor to provide sufficient base current, and operate within the safe temperature range of -55°C to +150°C. Following these precautions ensures stability and longevity of the C1815 transistor in circuits.
