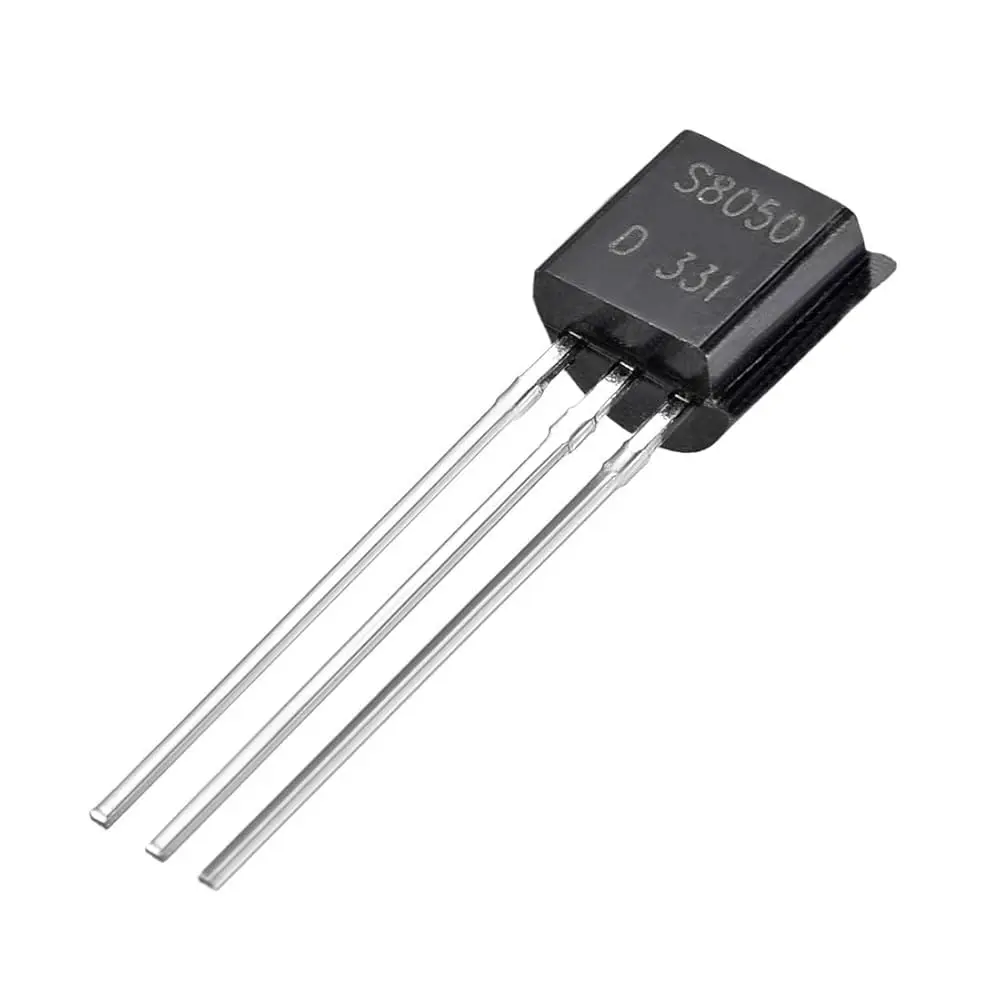

Transistor NPN S8050

Transistor NPN S8050

The S8050 is a low-voltage, high-current small signal NPN epitaxial silicon transistor. It is primarily designed for Class B push-pull audio amplifier circuits and general-purpose applications. It features a gain (hFE) ranging from 110 to 400. The maximum collector current is 700mA when the base current is limited to 5mA. Typical voltage ratings are 20V across the collector-emitter (VCE) and 30V across the base-emitter (VBE).

Package Includes

  • 1 x S8050 NPN Transistor (TO-92 Package)

1.05 AED 1.05 AED Tax Included
1.05 AED Tax Included

Not Available For Sale

This combination does not exist.

BJT NPN
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • Type: Bipolar NPN Epitaxial Silicon Transistor
  • DC Current Gain (hFE): 110 - 400
  • Maximum Collector Current (IC): 700mA
  • Collector-Base Voltage (VCB): 0V
  • Collector-Emitter Voltage (VCE): 20V
  • Emitter-Base Voltage (VEB): 5V
  • Maximum Power Dissipation: 1W
  • Junction Temperature: 150°C
  • Current Gain-Bandwidth Product: 100MHz
  • Package: TO-92

Applications and Uses

  • Class B Amplifiers
  • Push-Pull Circuits
  • Switching Small Loads
  • Amplifying Low Gain Signals to High Gain
