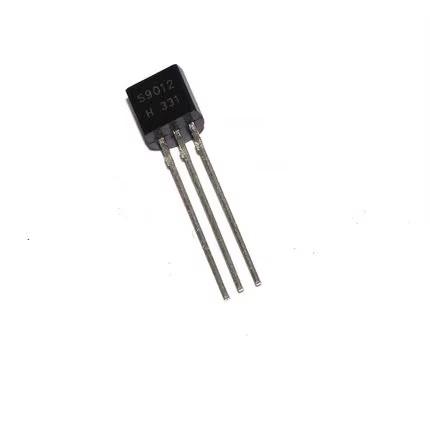

Transistor PNP S9012

Transistor PNP S9012

The S9012 is a PNP BJT transistor in a TO-92 package, commonly used in commercial electronic devices. It is primarily designed for audio amplification and can serve as a 1000mW amplifier for devices with low-power audio outputs. Like other general-purpose transistors such as 2N3906, 2N4403, and BC559, the S9012 is versatile and widely used in electronics projects. It can also function as a switch to drive loads up to 500mA, making it an essential component for hobbyists and labs.
1.05 AED 1.05 AED Tax Included
1.05 AED Tax Included

Not Available For Sale

This combination does not exist.

BJT PNP
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • Power Dissipation: 300mW
  • Collector Current: -500mA
  • Collector-Base Voltage: -40V
  • Operating Temperature Range: -55°C to +150°C
  • Storage Temperature Range: -55°C to +150°C

Usage

As a general-purpose PNP transistor, the S9012 can be used in various applications. It can drive 1-watt speakers in audio circuits or be included in amplification stages of larger audio systems. With its -5V emitter-base voltage (VBE) and 500mA load capacity, it is suitable for driving relays, ICs, LEDs, and even as a microcontroller output driver. Additionally, it can serve as a replacement for many other general-purpose PNP transistors.

Applications

  • Microcontroller output to drive loads
  • Audio amplifier circuits
  • Signal amplification
  • Driving loads under 500mA
  • Audio amplifier stages
