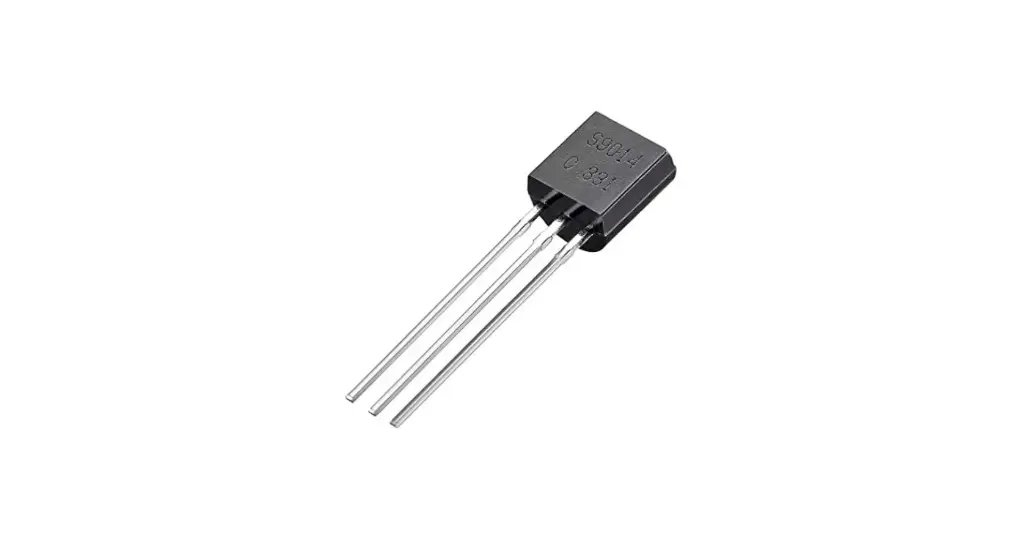

Transistor NPN S9014

Transistor NPN S9014

The SS9014 is a low signal, low noise NPN transistor designed for audio frequency (AF) pre-amplifier applications. With a high DC gain (hFE) of up to 1000 and good linearity, it is ideal for use in audio stages where low distortion and clean amplification are required. Housed in a TO-92 package, it offers excellent performance in compact designs.

Package Includes:

  • 1 x SS9014 NPN Transistor (TO-92 Package)

1.05 AED 1.05 AED Tax Included
1.05 AED Tax Included

Not Available For Sale

This combination does not exist.

BJT NPN
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Low noise NPN transistor for audio applications
  • Current Gain (hFE): 60 to 1000
  • Continuous Collector Current (IC): 100mA
  • Collector-Emitter Voltage (VCEO): 45V
  • Collector-Base Voltage (VCBO): 50V
  • Emitter-Base Voltage (VBE0): 5V
  • Transition Frequency: 150MHz
  • Collector Dissipation: 0.4W
  • Package: TO-92

Where to Use SS9014 Transistors?

  • Ideal for building low-noise audio pre-amplifiers
  • Can be paired with SS9015 (PNP) to build class B push-pull amplifiers
  • Commonly used in audio stages of wireless security cameras and small game consoles

How to Use SS9014 Transistors?

  • Choose SS9014 for circuits requiring low signal amplification and low noise
  • Use in AF pre-amp circuits requiring high hFE and moderate power dissipation
  • Typical configuration includes biasing the base with a voltage divider and coupling the input/output with capacitors

Applications:

  • Audio Frequency (AF) Pre-amplifiers
  • Class B Amplifiers
  • Low Noise Audio Equipment
  • Push-Pull Amplifier Circuits
