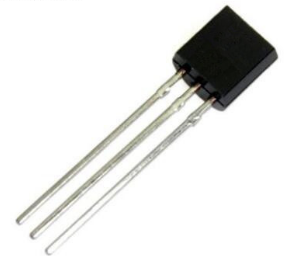

Transistor PNP A92

Transistor PNP A92

The A92 is a high voltage transistor capable of switching loads up to 300V with a very low trigger voltage (VBE) of just 5V. This makes it well-suited for digital electronics operating at 5V. In addition to its high voltage capability, it offers a fast operating speed of 50MHz and a low output capacitance of 3pF. However, it comes with a trade-off of lower current gain (50 hFE) and a maximum collector current of only 500mA.

Package Includes:

  • 1 x Trasnsistor
1.05 AED 1.05 AED Tax Included
1.05 AED Tax Included

Not Available For Sale

This combination does not exist.

BJT PNP
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • High Voltage PNP Transistor
  • Collector-Emitter Voltage (VCE): 300V
  • Collector-Base Voltage (VCB): 300V
  • Emitter-Base Voltage (VBE): 5V
  • Continuous Collector Current (IC): 500mA
  • DC Current Gain (hFE): Typically 40 at IC = 10mA
  • Transition Frequency: 50MHz
  • Package Type: TO-92

Applications

  • Low power amplifiers
  • High voltage, low current switching
  • Audio and signal amplifiers
