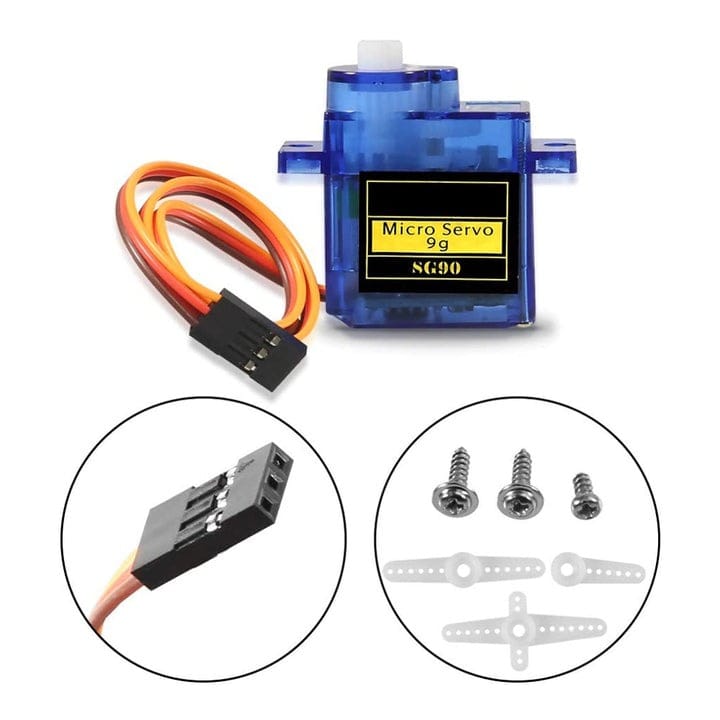

Servo Motor Micro SG90 9G Modified (Without Limiter)

Servo Motor Micro SG90 9G Modified (Without Limiter)

This servo looks identical to the standard SG90, but it has been modified by removing the limiter that normally restricts rotation between 0° and 180°. It behaves like a regular servo when controlled between 5° and 180°. However, if commanded to move below 5°, it will continuously rotate clockwise.

Package includes

  • 1 x Motor
  • gear horns and screws

9.45 AED 9.45 AED Tax Included
9.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Small Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features

  • Operating Voltage: +5V (typical)
  • Torque: 2.5 kg/cm
  • Operating Speed: 0.1s / 60°
  • Gear Type: Plastic
  • Rotation: 5°–180° as a normal servo; below 5° it continuously rotates clockwise
  • Weight: 9g

Wiring Configuration

Wire Number Wire Colour Description
1 Brown Ground wire connected to system ground
2 Red Powers the motor (typically +5V)
3 Orange PWM signal input to drive the motor
