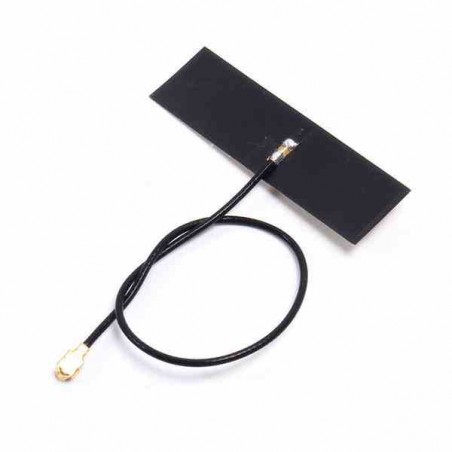

Antenna 2.4/5GHz 4dB Wifi Bluetooth ZigBee Omnidirectional (molex)

Antenna 2.4/5GHz 4dB Wifi Bluetooth ZigBee Omnidirectional (molex)

This flexible balanced antenna is suitable for Wi-Fi, Bluetooth, and Zigbee applications. It operates on both 2.4GHz and 5GHz bands and comes with a physical cable for easy connection and installation.
19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

2.4GHz Antenna
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • Length: 100.00 mm
  • Thickness: 0.10 mm
  • Width: 9.00 mm
  • Mounting Style: Adhesive
  • Net Weight: 0.532 g
  • Packaging Type: PET Film
  • Polarization: Linear
  • Radiation Pattern: Omnidirectional
  • Electrical Band #1: 2400 - 2483.5 MHz
  • Electrical Band #2: 4900 - 5930 MHz
  • Electrical Connectivity: Cable
  • Peak Gain: 3.0 dBi @ 2.4 GHz, 4.0 dBi @ 5 GHz
  • Return Loss (S11): < -10 dB
  • Total Efficiency: >75% @ 2.4 GHz, >75% @ 5 GHz
