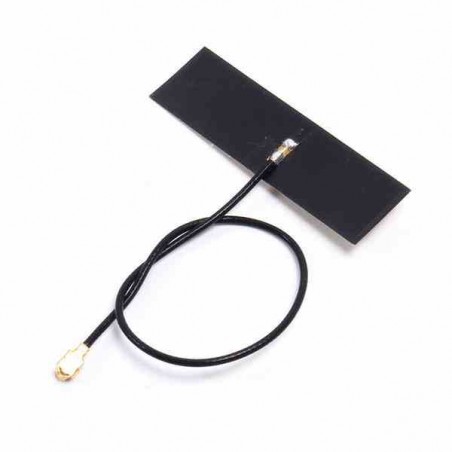

Antenna 2.4/5GHz 4dB Wifi Bluetooth ZigBee Omnidirectional (molex)

This flexible balanced antenna is suitable for Wi-Fi, Bluetooth, and Zigbee applications. It operates on both 2.4GHz and 5GHz bands and comes with a physical cable for easy connection and installation.
2.4GHz Antenna
19.95 AED 19.95 AED (Tax included)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications

  • Length: 100.00 mm
  • Thickness: 0.10 mm
  • Width: 9.00 mm
  • Mounting Style: Adhesive
  • Net Weight: 0.532 g
  • Packaging Type: PET Film
  • Polarization: Linear
  • Radiation Pattern: Omnidirectional
  • Electrical Band #1: 2400 - 2483.5 MHz
  • Electrical Band #2: 4900 - 5930 MHz
  • Electrical Connectivity: Cable
  • Peak Gain: 3.0 dBi @ 2.4 GHz, 4.0 dBi @ 5 GHz
  • Return Loss (S11): < -10 dB
  • Total Efficiency: >75% @ 2.4 GHz, >75% @ 5 GHz
