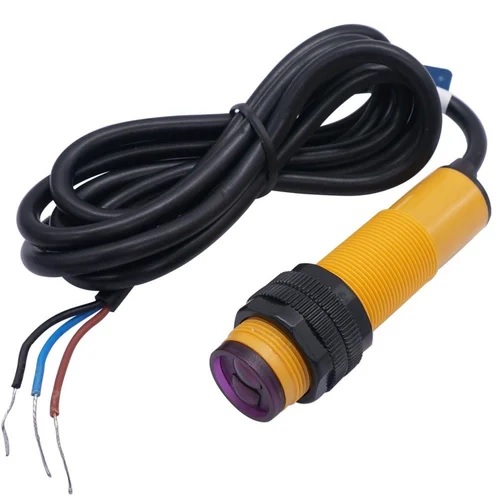

IR Infrared HD-D200CM Photoelectric Switch Long Distance Sensor ( 2 Meters )
The IR Infrared HD-D200CM Photoelectric Switch is a long-distance sensor that uses photoelectric induction to detect objects. Unlike inductive sensors, it can detect a wide variety of materials, not just metals. With a measuring range of up to 2 meters, it is suitable for various detection and measurement applications. Note: While its detection range is specified as 0–300mm, accuracy may be influenced by environmental factors.
Package Includes
- 1 x IR Infrared HD-D200CM Photoelectric Switch Long Distance Sensor (2 Meters)
Features
- Long-distance detection: Up to 2 meters range.
- Wide material detection: Detects multiple materials, not limited to metal.
- Photoelectric induction: Reliable detection technology.
- Easy installation: Supports flush, bracket, or through-hole mounting.
- Durable build: Sturdy design for harsh environments.
- Error correction: Compensates for environmental measurement errors.
Specifications
- Voltage: 5VDC
- Current: 5mA
- Measurement Range: 0.1 – 2m
- Output: NPN, normally open (can drive low-level signal relay module)
- Probe Size: 20 × 10 × 8mm
- Wire Length: 1m
- Weight: 10g
Applications
- Automatic counting equipment: Counting products on conveyor belts.
- Security alarm systems: Detecting presence for triggering alarms.
- Traffic detection: Detecting vehicles, bicycles, or pedestrians at intersections.
Pin Connections
| Wire Color | Connection |
|---|---|
| Red | VCC |
| Black | GND |
| Green | OUT |
