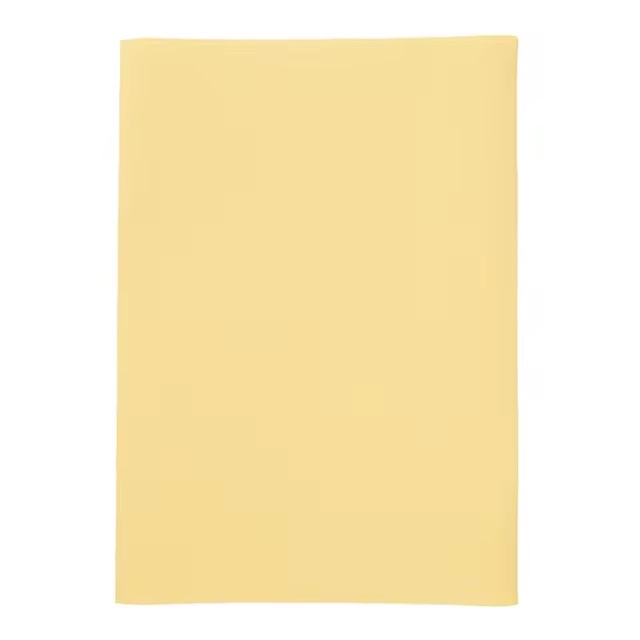

Prototype PCB Thermal Transfer A4 Paper (Per Paper)

Prototype PCB Thermal Transfer A4 Paper (Per Paper)

Thermal transfer printing is a digital printing method used to transfer ink from paper to a copper-clad PCB. This process involves printing the circuit layout using a laser printer and then transferring the ink onto the copper surface through heat application, enabling precise PCB prototyping at home.
2.10 AED 2.10 AED Tax Included
2.10 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Method of Use:

  1. Use a laser printer to print the circuit board wiring diagram onto the smooth side of the thermal transfer paper.
  2. Set the transfer machine to 150–180°C. Place the printed side of the paper onto the copper-clad board and perform the transfer.
  3. If you don’t have a transfer machine, you can use a household electric iron for hand transfer.
  4. After transferring, remove the paper and place the copper-clad board into ferric chloride solution for etching.
  5. Once etching is complete, clean the toner off the board using gasoline.
