Features

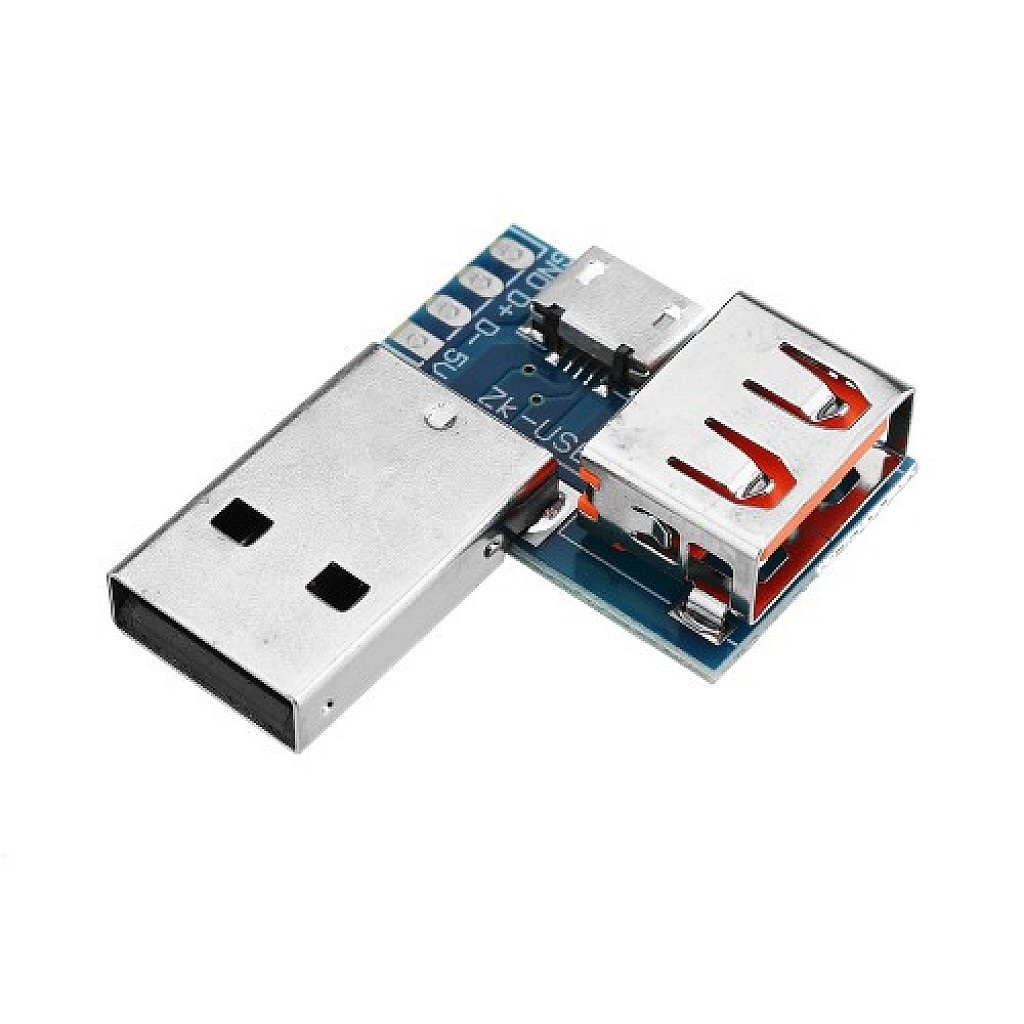

- Multi-interface USB adapter board.
- Includes USB Type-A male and USB Type-A female connectors.
- Includes a Micro USB female connector.
- Includes a 4-pin 2.54 mm header interface.
- Can be used for voltage and data interface connections.
- Compact design for easy integration into electronic projects.
- Useful for USB development, testing, and prototyping.
- Provides multiple connection options without requiring separate adapter boards.
Adaptability
The converter provides different connection options for USB power and data interfaces. It can be used when a project requires conversion or access between USB Type-A, Micro USB, and 2.54 mm header connections.
This makes the board useful for development boards, electronic modules, USB accessories, and other projects where connector compatibility is required.
Compact Design and Easy Integration
The compact 32 × 26 mm board can be installed into small electronic setups and development projects. The different connectors are arranged on one board, providing a practical interface solution while reducing the need for multiple separate adapters.
Interface Connections
| Interface | Type | Purpose |
|---|---|---|
| USB Type-A | Male | USB connection |
| USB Type-A | Female | USB connection |
| Micro USB | Female | Micro USB connection |
| 4P Header | 2.54 mm | Power and interface connection |
Applications
- USB interface testing.
- Microcontroller development.
- Embedded electronics projects.
- USB power connections.
- USB data interface projects.
- Electronic prototyping and laboratory testing.
- DIY electronics projects.
- Development boards and module connections.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Multi-functional USB interface converter |
| USB Type-A | Male and Female |
| Micro USB | Female |
| Header | 4-pin, 2.54 mm pitch |
| Working Voltage | DC 5V |
| Working Temperature | -20°C to 85°C |
| Working Humidity | 0% - 95% RH |
| Dimensions | 32 × 26 mm |
