Barcode Recognition Scanner Module 2D v3.0 Engine

Barcode Recognition Scanner Module 2D v3.0 Engine

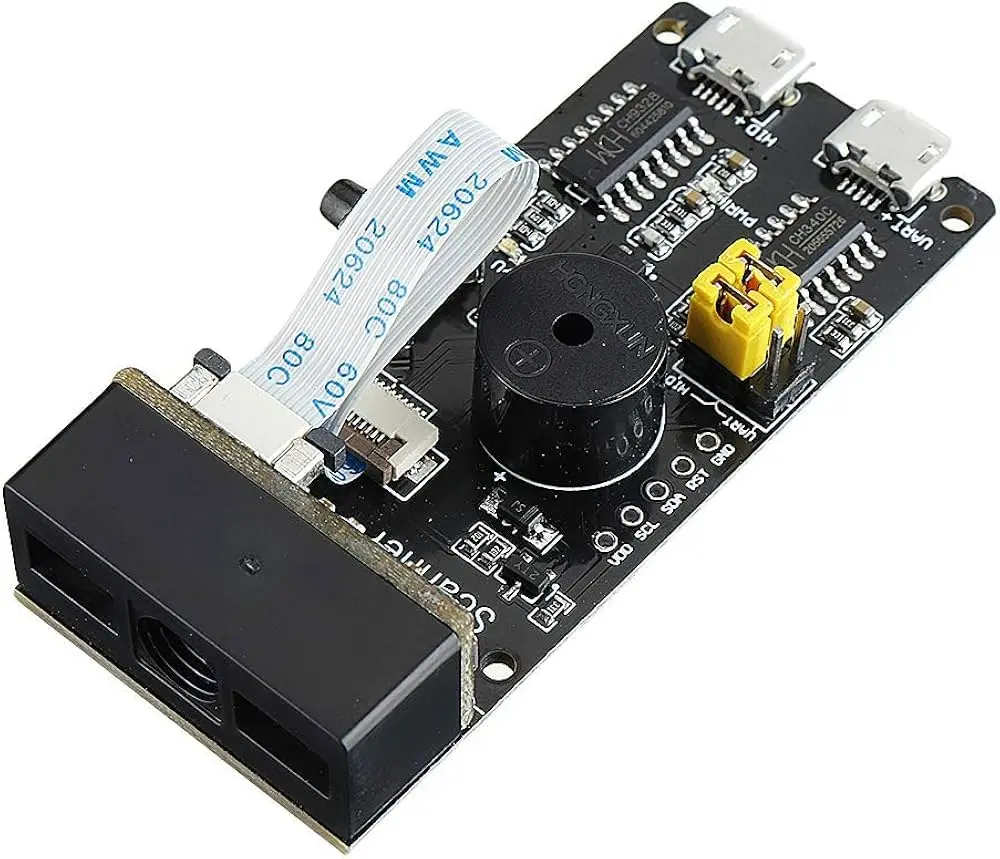

The 2D Barcode Recognition Scanner Module v3.0 is equipped with a professional image processing chip for barcode recognition. It provides fast and stable reading performance in complex environments and supports reading from paper, screens, and plastic surfaces. Its compact design includes both USB and UART interfaces, making it easy to connect to a computer or integrate into embedded systems.

Package Includes:

  • 1 × 2D Barcode Scanning Module

199.00 AED 199.00 AED Tax Included
199.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Simple operation – no need to understand complex image recognition algorithms
  • Supports common 1D and 2D codes including barcodes and QR codes
  • Onboard micro USB and UART serial port for easy integration
  • Auxiliary light source enables reading in total darkness
  • Quick cold/warm start – always ready without waiting
  • Low power consumption and minimal heat generation
  • Supports setup by scanning setup codes (see specification for details)
  • Adjustable settings: read mode, baud rate, command mode, tone output, output format, barcode type filtering
  • Compact Size: 65 × 28 × 13.5 mm

Supported Barcode Types:

  • 1D Barcodes: UPC/EAN, BooklandEAN, ISSN, UCC Coupon, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar, and more
  • 2D Codes: QR Code, PDF417, Data Matrix
