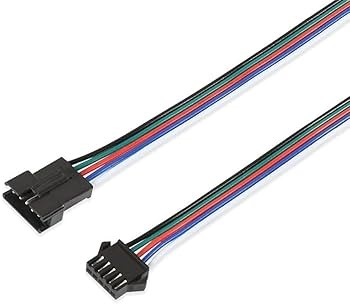

Cable Connector SM 2.5mm Male & Female Plug With Wire Cable 5-Pin 20cm

Cable Connector SM 2.5mm Male & Female Plug With Wire Cable 5-Pin 20cm

This 5-pin SM male and female connector plug set is ideal for quick-disconnect electrical connections in LED lighting systems, DIY electronics, and various DC applications. Each connector is pre-wired with 150mm cables, offering convenience for direct soldering.

Note: Wire colors may vary depending on the batch.

Package Includes:

  • 1 × SM 5-Pin Male Housing Connector with Wire
  • 1 × SM 5-Pin Female Housing Connector with Wire

SM 2.5mm
7.35 AED 7.35 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Connector Type: SM 5-Pin Male & Female
  • Pitch: 2.5mm
  • Wire Type: 26 AWG
  • Wire Length: Approx. 150mm (15cm)
  • Wire End: Solder bare wire
  • Voltage Rating: 250V DC/AC
  • Current Rating: 3.0A DC/AC
  • Operating Temperature: -25°C to +85°C
  • Withstand Voltage: 500 VAC/min (effective value)
  • Insulation Resistance: ≥1500MΩ
  • Contact Resistance: ≤0.02Ω
