Features
- Standard 5 x 20mm cartridge size
- Glass cartridge body
- 1A current rating
- 250V voltage rating
- Provides protection against excessive current
- Suitable for electronic and electrical circuits
- Compact design for use with compatible fuse holders
Principle of Operation

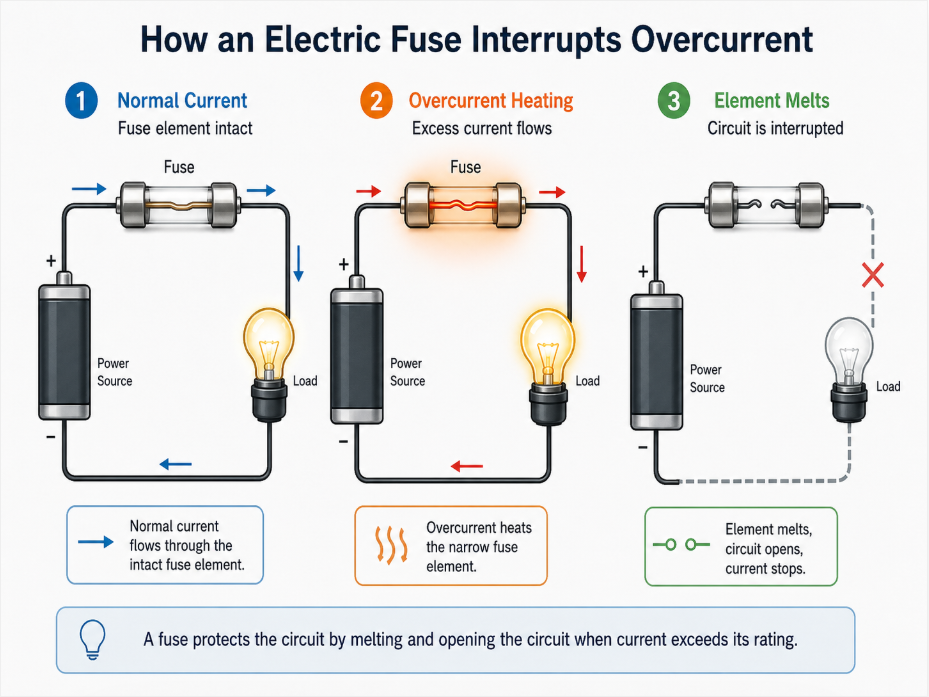

The fuse is connected in series with the protected circuit. When the current exceeds the fuse's rated current for a sufficient period, the internal fuse element heats up and melts, opening the circuit and stopping the current flow. This helps protect connected components and wiring from overcurrent conditions.
Applications
- Power supply protection
- Electronic equipment
- Control circuits
- Electrical protection circuits
- PCB-mounted fuse holders
- General-purpose overcurrent protection
Wiring
Install the fuse in series with the circuit or load that requires protection. Use a compatible 5 x 20mm fuse holder and ensure the circuit operating voltage and expected current are suitable for the fuse rating.
Specifications

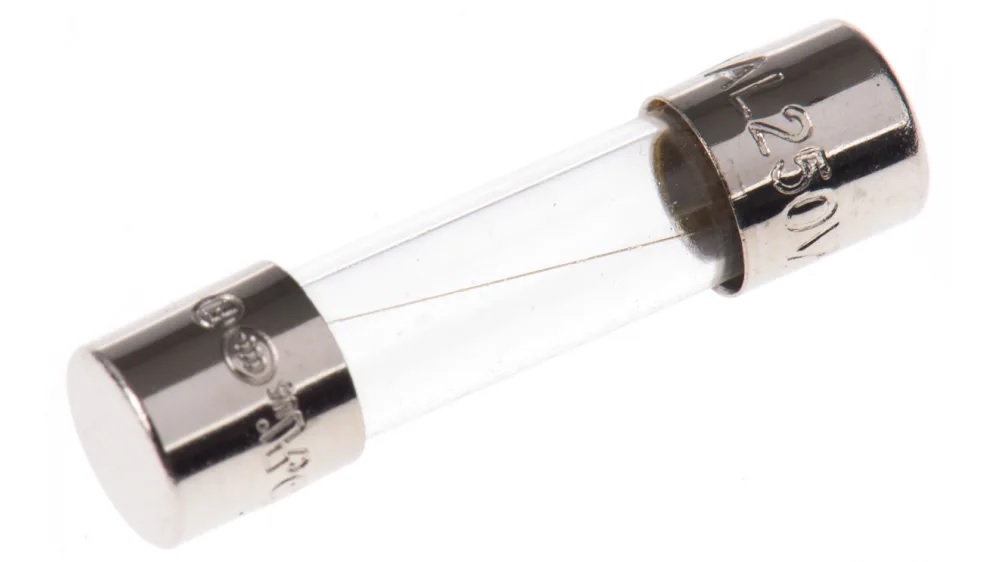

- Type: Glass Cartridge Fuse
- Fuse Size: 5 x 20mm
- Rated Current: 1A
- Rated Voltage: 250V
- Body Material: Glass
- Polarity: Non-polarized
- Terminals: Metal end caps
Features
- Standard 5 x 20mm cartridge size
- Glass cartridge body
- 1A current rating
- 250V voltage rating
- Provides protection against excessive current
- Suitable for electronic and electrical circuits
- Compact design for use with compatible fuse holders
Principle of Operation
The fuse is connected in series with the protected circuit. When the current exceeds the fuse's rated current for a sufficient period, the internal fuse element heats up and melts, opening the circuit and stopping the current flow. This helps protect connected components and wiring from overcurrent conditions.
Applications
- Power supply protection
- Electronic equipment
- Control circuits
- Electrical protection circuits
- PCB-mounted fuse holders
- General-purpose overcurrent protection
Wiring
Install the fuse in series with the circuit or load that requires protection. Use a compatible 5 x 20mm fuse holder and ensure the circuit operating voltage and expected current are suitable for the fuse rating.
Specifications
- Type: Glass Cartridge Fuse
- Fuse Size: 5 x 20mm
- Rated Current: 1A
- Rated Voltage: 250V
- Body Material: Glass
- Polarity: Non-polarized
- Terminals: Metal end caps
