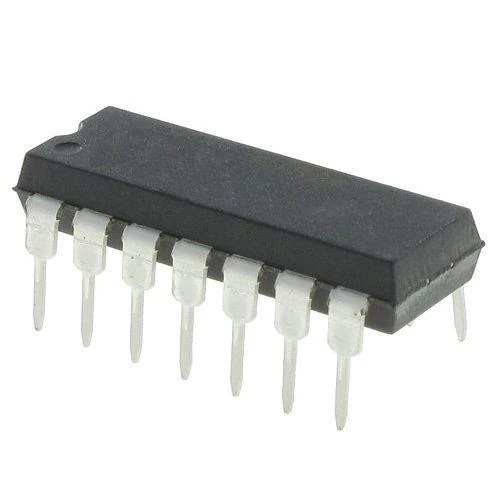

IC High Side Low Side Gate Driver DIP IRS2113PBF

IC High Side Low Side Gate Driver DIP IRS2113PBF

The IRS2113 is a high-voltage, high-speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Using proprietary HVIC and latch-immune CMOS technologies, it offers ruggedized monolithic construction. The logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. Its output drivers feature a high pulse current buffer stage to minimize cross-conduction, while matched propagation delays simplify high-frequency applications. The floating channel can drive an N-channel MOSFET or IGBT in the high-side configuration up to 500V or 600V.

Package Includes:

  • 1x IRS2113PBF IC High Side Low Side Gate Driver DIP

10.77 AED 10.77 AED Tax Included
10.77 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High voltage, high-speed power MOSFET and IGBT drivers
  • Independent high-side and low-side referenced output channels
  • Proprietary HVIC and latch-immune CMOS technologies
  • Compatible with standard CMOS or LSTTL output
  • High pulse current buffer stage for minimum cross-conduction
  • Matched propagation delays for high-frequency applications
  • Floating channel for high-side configuration up to 600V

Specifications:

  • Status: Active
  • Driven Configuration: Half-bridge
  • Channel Type: Independent
  • Number of Drivers: 2
  • Gate Type: IGBT, N-channel MOSFET
  • Voltage Supply: 10V to 20V
  • Logic Voltage (VIL, VIH): 6V, 9.5V
  • Peak Output Current (Source/Sink): 2.5A / 2.5A
  • Input Type: Non-inverting
  • High-Side Voltage (Bootstrap Max): 600V
  • Rise/Fall Time (Typ.): 25ns / 17ns
  • Operating Temperature: -40°C to 150°C (TJ)
  • Mounting Type: Through-hole
  • Package: 14-DIP (0.300", 7.62mm)

Applications:

  • High voltage, high-speed MOSFET and IGBT driving
  • Half-bridge configuration circuits
  • High-frequency applications
  • Power inverters
  • Motor control circuits

Pinout:

Pin Description
1 Inverting pin: If voltage > non-inverting pin, duty cycle increases
2 Non-inverting pin: If voltage > inverting pin, duty cycle decreases
3 Synchronization pin: Used for synchronizing waves
4 Oscillator output
5-7 Frequency set pins: Set PWM frequency
8 Soft start pin (SS): Higher capacitance increases delay
9 Compensation pin: Feedback stabilization
10 Shutdown pin: 0 = active, 1 (5V) = shutdown
11 Output pin: MOSFET driver
12 Ground
13 Vc (Power pin): 5–35V
14 Output pin: MOSFET driver
15 Vin (Power pin): 8–35V
16 Reference pin: Provides reference voltage or 5V for shutdown
