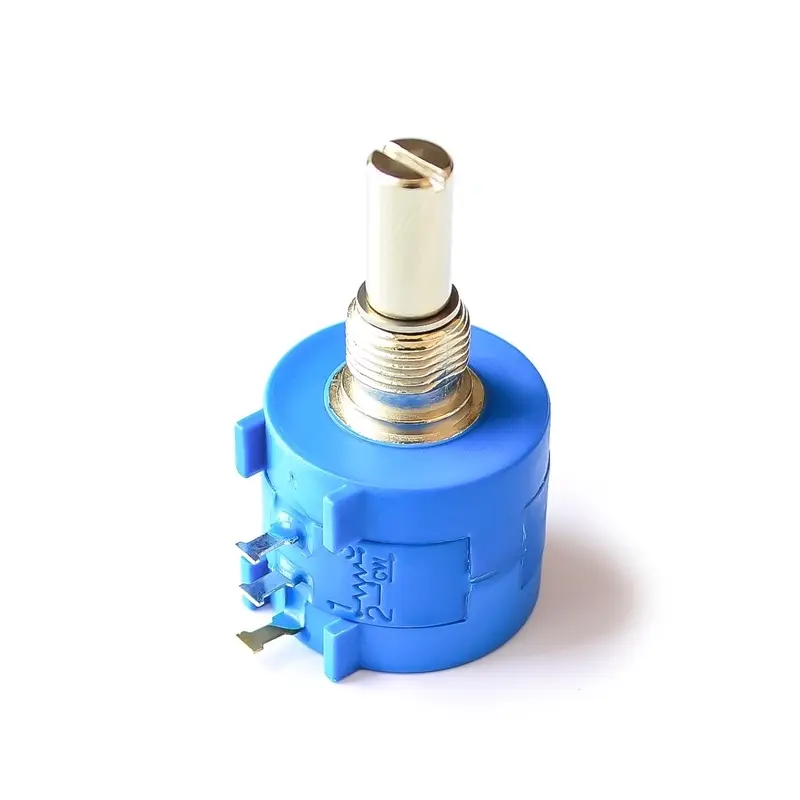

Potentiometer With Knob 3590S 10K 103 Pot Adjustable Multi Turn Blue

Potentiometer With Knob 3590S 10K 103 Pot Adjustable Multi Turn Blue

The 3590S 10K 103 is a high-precision, multi-turn potentiometer with an adjustable knob, designed for accurate control in Human-Machine Interface (HMI) applications. Featuring a durable wire wound construction, it offers a resistance range from 200 to 100K ohms with ±5% tolerance and ±0.25% linearity. The potentiometer supports both solder lugs and PC pins, with optional plastic or metal shafts and a fully sealable body. Rated at 2W power at +40°C, it is ideal for demanding environments with excellent insulation resistance and a 3600° electrical angle.
14.70 AED 14.70 AED Tax Included
14.70 AED Tax Included

Not Available For Sale

This combination does not exist.

Multiturn Variable Resistor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features:

  • Bushing mount
  • Optional AR pin feature
  • Plastic or metal shaft and bushings
  • Wirewound
  • Solder lugs or PC pins
  • Sealable (Full body seal)
  • Designed for use in HMI applications

Specifications:

  • Standard Resistance Range: 200 to 100K ohms
  • Total Resistance Tolerance: ±5%
  • Independent Linearity: ±0.25%
  • Effective Electrical Angle: 3600° +10°, -0°
  • Absolute Minimum Resistance: 0.1 ohm or 0.1% maximum (whichever is greater)
  • Noise: 100 ohms ENR maximum
  • Insulation Resistance (500 VDC): 1,000 megohms minimum
  • Dielectric Withstanding Voltage (MIL-STD-202, Method 301) - Sea Level: 1,500 VAC minimum
  • Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less):
    • At +40°C: 2 watts
    • At +125°C: 0 watt
