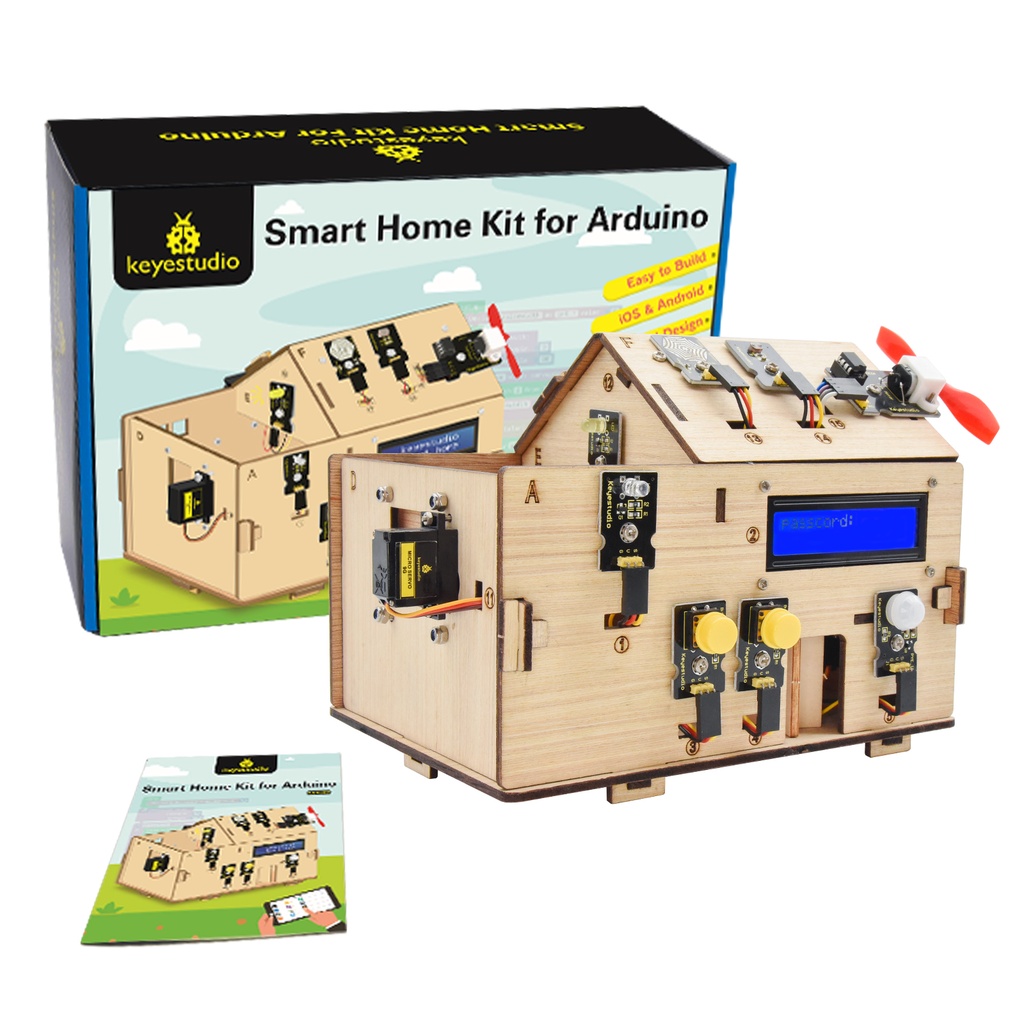

Keyestudio Smart Home Kit + Arduino Uno Compatible
The KEYESTUDIO DIY Smart Home Kit allows you to build your own smart home system using Arduino. It provides both entertainment and functionality through interactive projects. This kit comes with an app compatible with both Android and iOS devices, offering remote control and monitoring capabilities for various smart home functions.
Package Includes
- 1 × Keyestudio UNO R3 Plus (with USB Type-C interface)
- 1 × Expansion board
- 1 × USB Type-C data cable
- Various breadboard and sensor connection cables
- 1 × 2×20 character LCD display (I²C interface)
- 2 × Push buttons
- 2 × 9g servo motors
- 1 × Photoresistor
- 1 × Passive buzzer
- 1 × Capacitive touch sensor
- 1 × Fan module
- 1 × Capacitive soil moisture sensor
- 1 × 5mm yellow LED module
- 1 × 5mm clear LED module
- 1 × Bluetooth HM-10 module (Bluetooth 4.0)
- Assorted screws, nuts, and
- 1 × 3.0 × 40 mm Phillips screwdriver
This kit comes With the included modules, you can:
- View temperature and humidity data from your home via a web browser
- Automatically close the door if no motion is detected by the PIR sensor
- Control LEDs and other devices using your smartphone
- Explore many other creative and educational applications
The Most Comprehensive Smart Home Kit
This universal smart home kit is compatible with the Arduino R3 board and allows you to complete up to 14 different projects based on your needs. It includes a wide range of carefully selected sensor modules to detect:
- Temperature
- Humidity
- Sound
- Light
- Infrared signals
- Motion
- Flame
- Vibration
- Digital touch
- Air pressure
- And more
Beautiful Packaging
The kit comes in a creatively designed house-shaped box that vividly displays the concept of a smart home. It also features elegant packaging, making it an ideal gift for DIY electronics enthusiasts.
Uno Included Specifications
| Manufacturer | KEYESTUDIO |
| Package Dimensions | 21.8 x 19.8 x 8.3 cm |
| Item Weight | 740 g |
| Manufacturer Reference | KS0085 |
| Item | Smart Home Kit |
| RAM (Arduino Board) | 1 KB |
| Connectivity | Infrared, Bluetooth |
| Operating Systems | SteamOS, Android |
| Batteries Included | No |
Applications
- RGB LED Backlight Control
- Light Color Temperature Measurement
- Ambient Light Sensing for Display Backlight Control
- Fluid and Gas Analysis
- Product Color Verification and Sorting
Pinout of the Board
The Keyestudio PLUS Control Board is fully compatible with the Arduino IDE and includes all the functions of the Arduino UNO board, with several enhanced features. It's perfect for learning to build circuits and write code.
- Serial Communication Interface: D0 (RX), D1 (TX)
- PWM Interface: D3, D5, D6, D9, D10, D11
- External Interrupt Interface: D2 (Interrupt 0), D3 (Interrupt 1)
- SPI Interface: D10 (SS), D11 (MOSI), D12 (MISO), D13 (SCK)
- I²C Interface: A4 (SDA), A5 (SCL)
