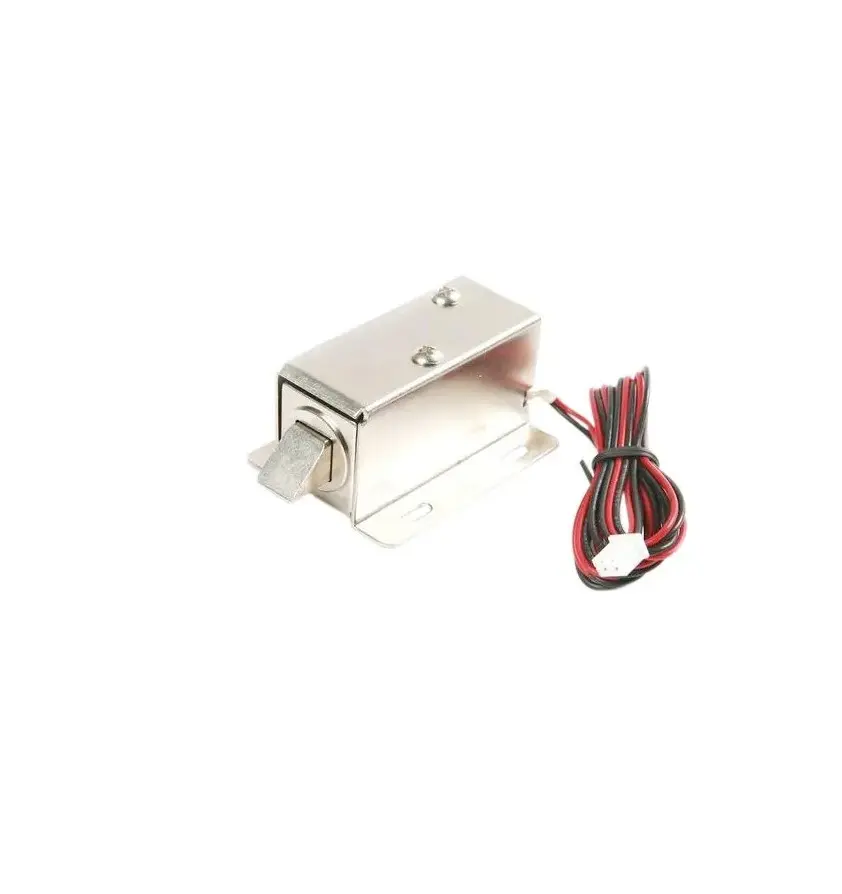

Magnetic Lock DC 12V 0.35A Solenoid 99-S12

Magnetic Lock DC 12V 0.35A Solenoid 99-S12

The 99-S12 Smart Cabinet Electromagnetic Lock is a high-performance electronic locking component designed for secure cabinet and door locking applications. Its compact design and reliable performance make it ideal for electric and automatic door systems.

Package Includes:

  • 1 × 99-S12 Smart Cabinet Electromagnetic Lock

32.00 AED 32.00 AED Tax Included
32.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Magnetic Lock
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High Power Performance: Ensures secure and reliable locking in electronic systems.
  • Easy Installation: Compact form factor simplifies integration into various locking mechanisms.
  • Versatile Applications: Compatible with 6V and 12V systems.
  • Durable Construction: Rated for up to 10 million cycles of operation.
  • Environmental Tolerance: Operates in wide temperature and humidity ranges.

Specifications:

  • Operating Voltage: DC 12V
  • Current Draw: 0.35A
  • Product Size: 3.3 x 2.7 x 1.7 cm (1.3 x 1.06 x 0.67 in)
  • Product Weight: 35g
  • Pull Stroke: 0–4mm
  • Suction Force: ≥80g at 4mm (0.35A)
  • Retention Force: ≥120g at 0mm
  • Mode of Operation: Power on 90%, interval
  • Operating Temperature Range: -25°C to 80°C
  • Relative Humidity: 45%–80%
  • Atmospheric Pressure: 86–106 KPa
  • Withstand Voltage: AC 1000V
  • Insulation Resistance: 50MΩ
  • Lead Out Form: Lead wire
  • Life Expectancy: 10,000,000 cycles
