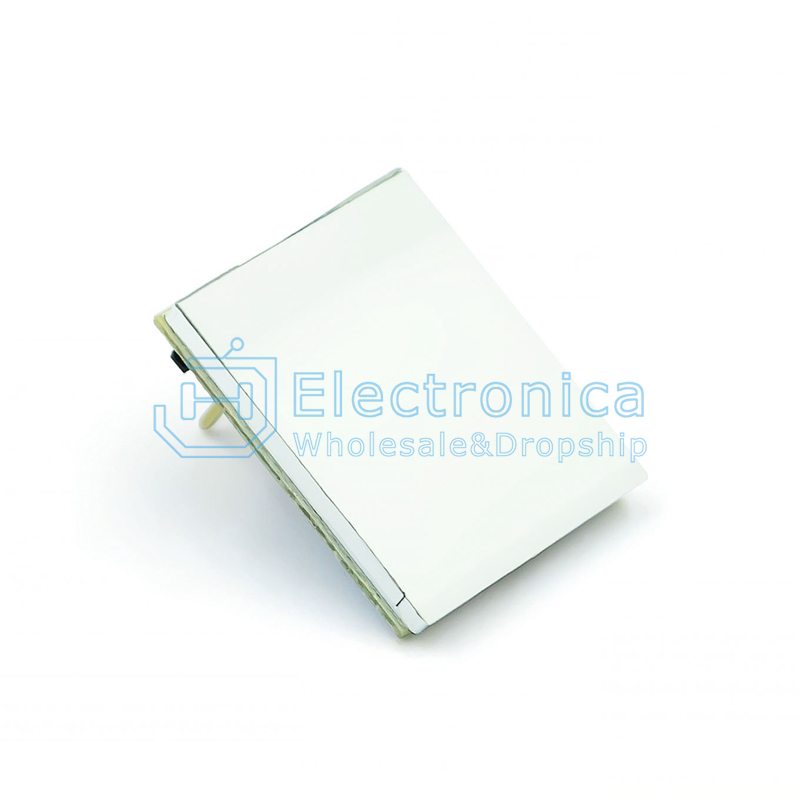

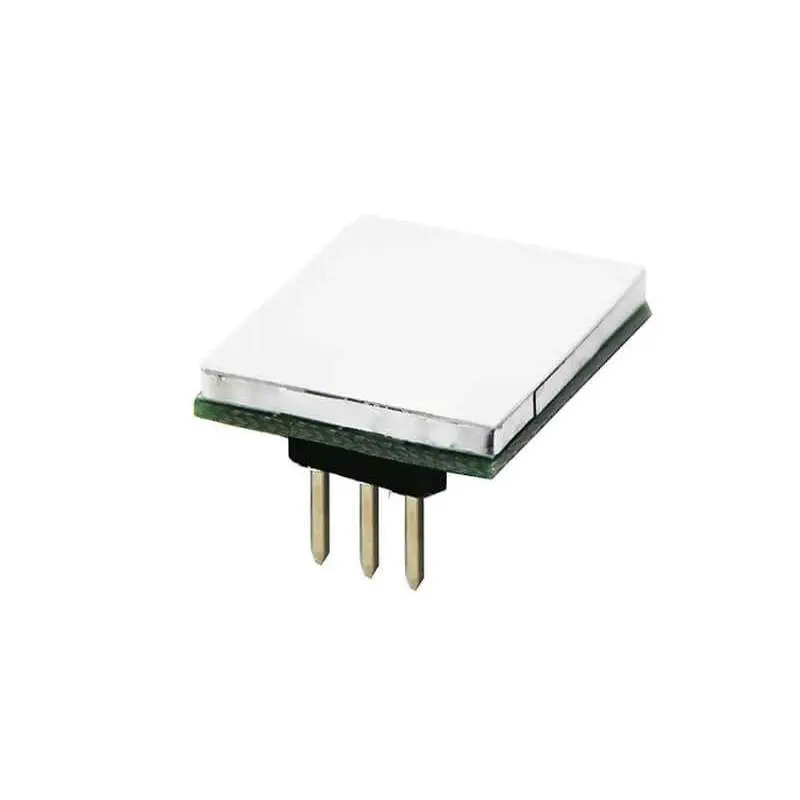

Touch Capacitive Button Module Red Color HTTM
The HTTM Touch Capacitive Switch Button Module Red Color is an electronic switch button module that does not have any mechanical parts, making it highly durable with a long lifespan and low maintenance costs. The button can be placed on any insulating layer, such as glass or plastic, and easily sealed to prevent any moisture or water damage. Compared to mechanical buttons, this capacitive button is less prone to damage.
Package Includes:
- 1 x Touch Capacitive Button Module Red Color HTTM
The module allows for modification of the resistance at the rear by adjusting the output signal of the latch output. It has a wide input voltage range of 2.7 volts to 6 volts, and a 3.3 volt signal output can be used directly to drive relays, optocouplers, LED lights, and other interface devices. The operating temperature range is between 30 and 70 degrees Celsius.
The HTTM Touch Capacitive Switch Button Module is highly sensitive to touch, with no delay, flicker, or adverse reactions. It is easy to install and suitable for a range of applications, including keyboards, electronic devices, and control systems. The Red color adds a touch of style to the design, making it a popular choice among users.
Features:
- A built-in anti-jamming algorithm, with excellent anti-jamming performance.
- No mechanical parts: The module does not have any mechanical parts, making it highly durable with a long lifespan and low maintenance costs.
- Easy to seal: The detection part can be placed on any insulating layer and easily sealed to prevent any moisture or water damage.
- Highly sensitive touch: The module is highly sensitive to touch, with no delay, flicker, or adverse reactions.
- Adjustable resistance: The resistance at the rear can be modified by adjusting the output signal of the latch output.
- Wide input voltage range: The module has a wide input voltage range of 2.7 volts to 6 volts.
- Directly drives interface devices: A 3.3 volt signal output can be used directly to drive relays, optocouplers, LED lights, and other interface devices.
- Operating temperature range: The module has an operating temperature range between 30 and 70 degrees Celsius.
Specifications:
- Operating voltage: 2.7 - 6 V
- Working temperature: 30 to 70 °C
- Pin output voltage: 3.3 V
- Maximum pin out current: 500 mA
- Output mode selection: Adjustable
- Color: Red
Applications:
- Keyboard: The module can be used as an input button for keyboards, including those used in computers, gaming devices, and other electronic equipment.
- Electronic devices: The module can be used as an on/off switch for various electronic devices, such as home appliances, audio and video equipment, and industrial machines.
- Control systems: The module can be used in control systems to turn on and off different components, such as motors, pumps, valves, and lights.
- Automotive applications: The module can be used in automotive applications, such as an interior button to control car windows, locks, and mirrors.
- Medical devices: The module can be used in medical devices, such as patient monitors, to control various functions.
- Industrial automation: The module can be used in industrial automation systems to control machines and other components.
- Security systems: The module can be used in security systems, such as access control systems and alarm systems, to activate different functions.
- Lighting systems: The module can be used in lighting systems, such as home or office lighting, to turn lights on and off.

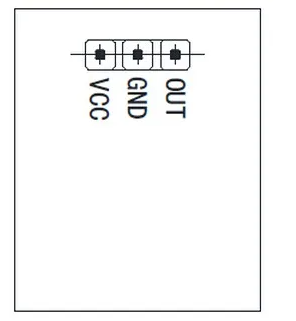

Pin Connections:
| Pin | Description |
|---|---|
| OUT | Output pin that provides a signal when the button is touched. |
| VCC | Power supply pin that connects to the positive terminal of the power source (2.7 - 6V). |
| GND | Ground pin that connects to the negative terminal of the power source. |
